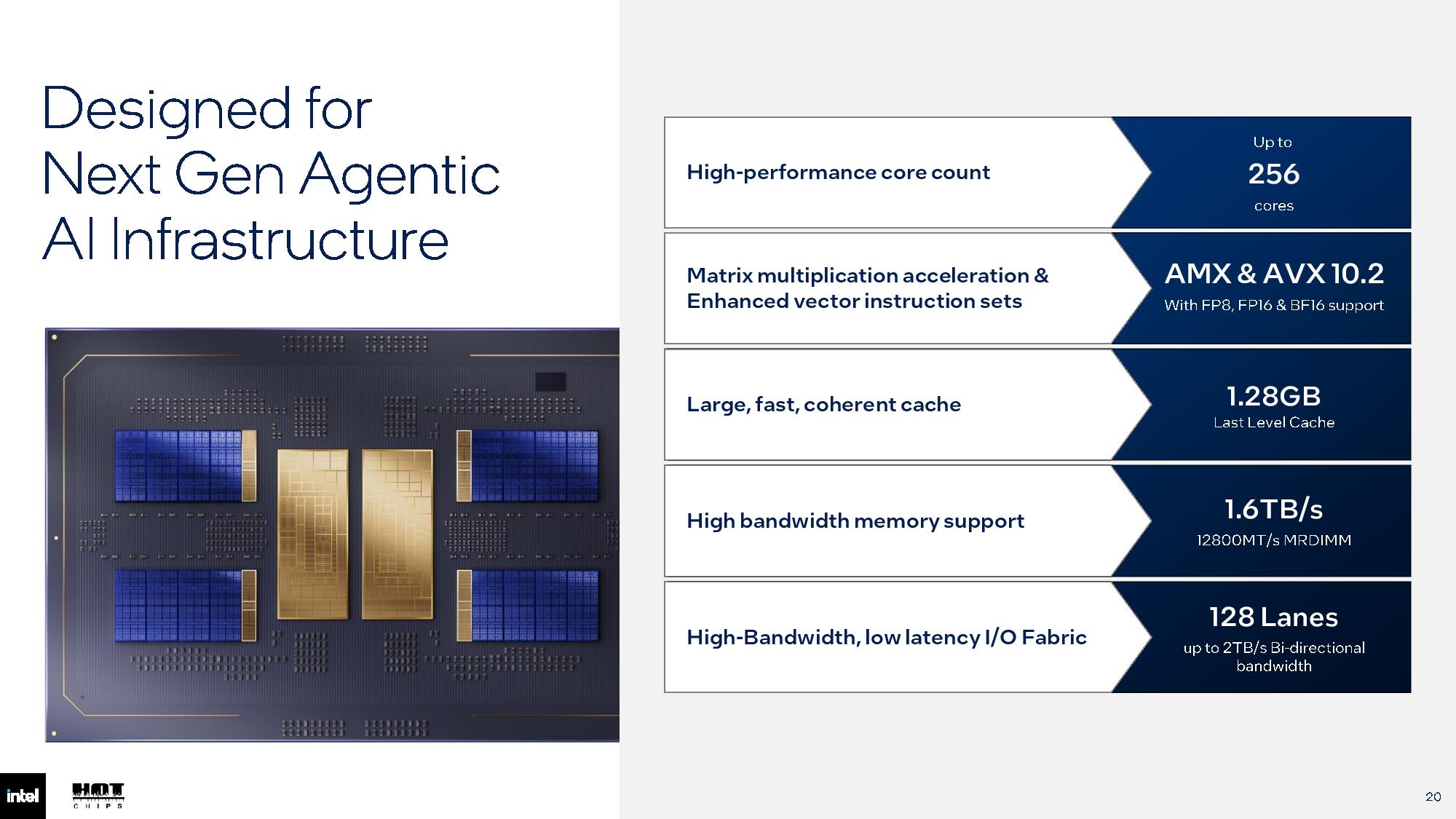

After teasing the chips earlier this year, Intel has provided some details on its next-gen Xeon 7, codenamed Diamond Rapids, CPUs. Featuring up to 256 P-cores and 1.28 GB of last-level cache, the new range of CPUs is set to release in the data center in 2027. The range brings forth several advancements we’ve expected on Intel’s roadmap, including the enhanced 18A-P process, UCIe interconnects, AVX 10.2, and Intel’s new “fan-out” fabric.

Intel didn’t detail the core architecture (known as Panther Cove) in Diamond Rapids during its Hot Chips 2026 presentation, so we’ll likely have at least one more technical deep dive on Diamond Rapids before it arrives, and possibly more. Although there are still questions about Panther Cove, Intel shared a technical breakdown of how Diamond Rapids chips are built more broadly, including a look at the compute tiles and how they come together across the chip.

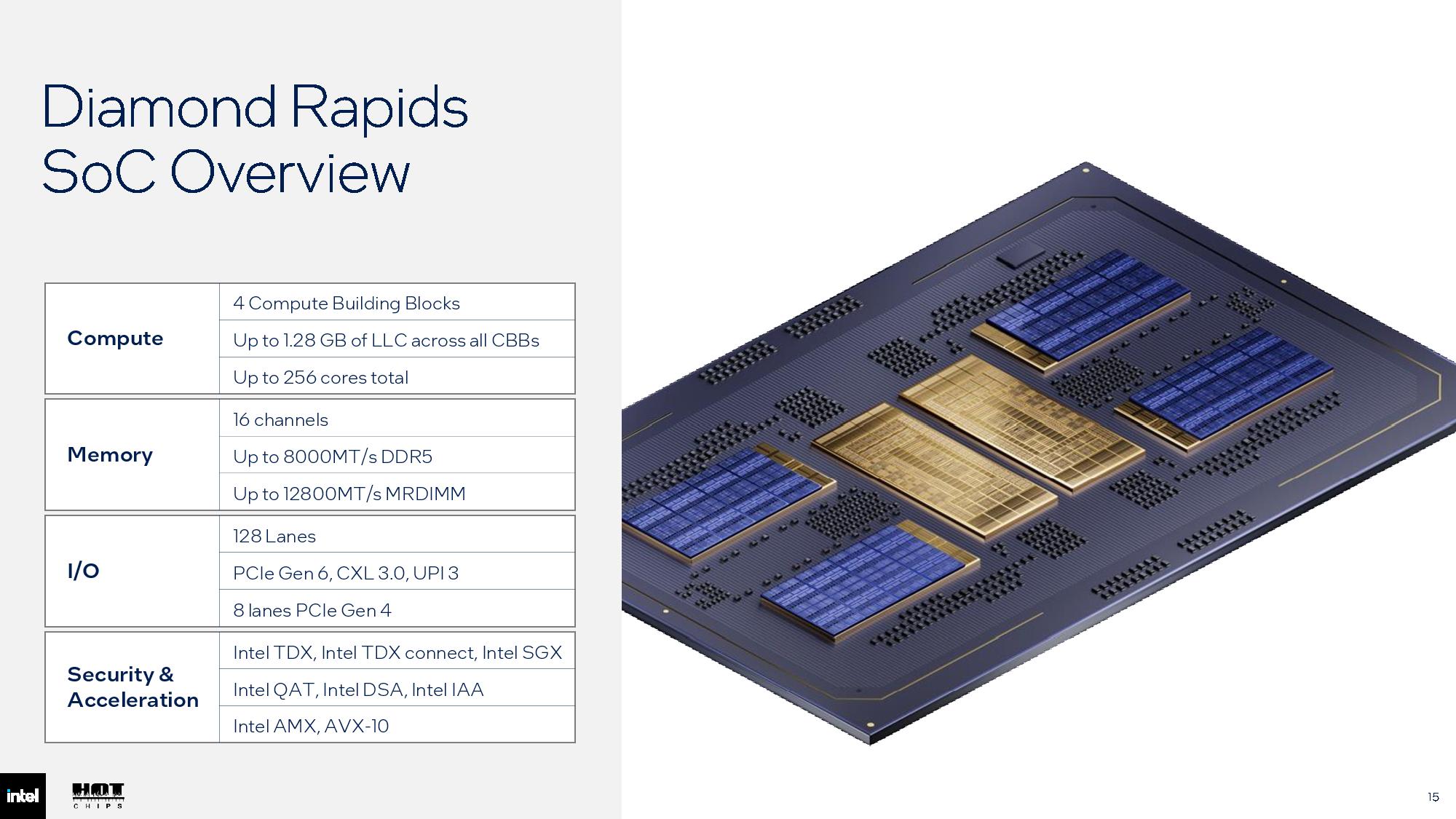

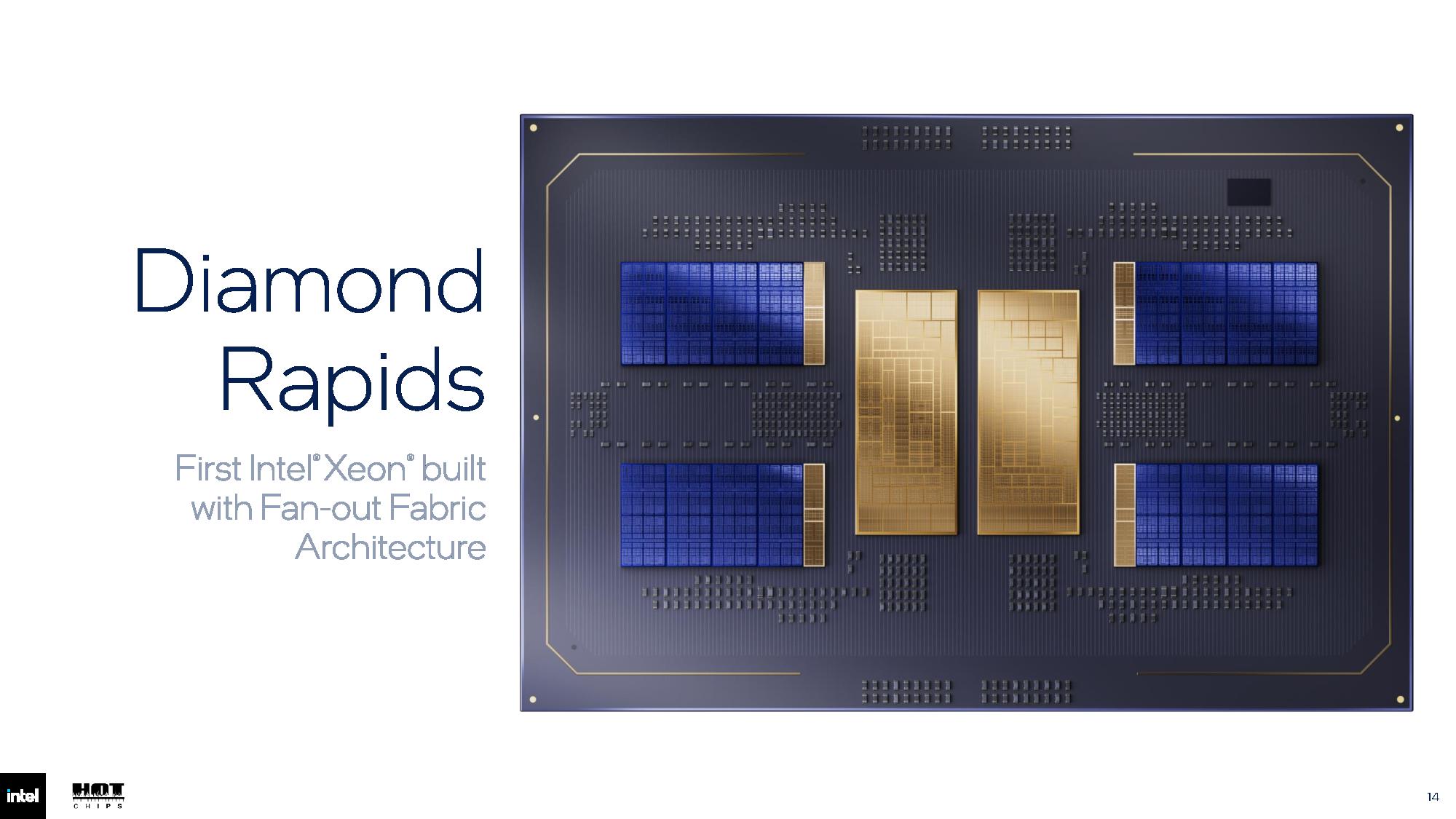

Intel calls the compute tiles Compute Building Blocks, or CBBs, and they hold the core chiplet stacked on top of the base tile that holds the LLC. Each core chiplet can hold up to 16 cores, and based on the scaled-up Diamond Rapids SoC, up to four of those chiplets can live in a CBB. Each chiplet connects to the base tile with a 3D Xbar. A full Diamond Rapids SoC includes four base tiles built on Intel 3-T, two fabric hub tiles built on Intel 3, and 16 core chiplets built on Intel 18A-P.

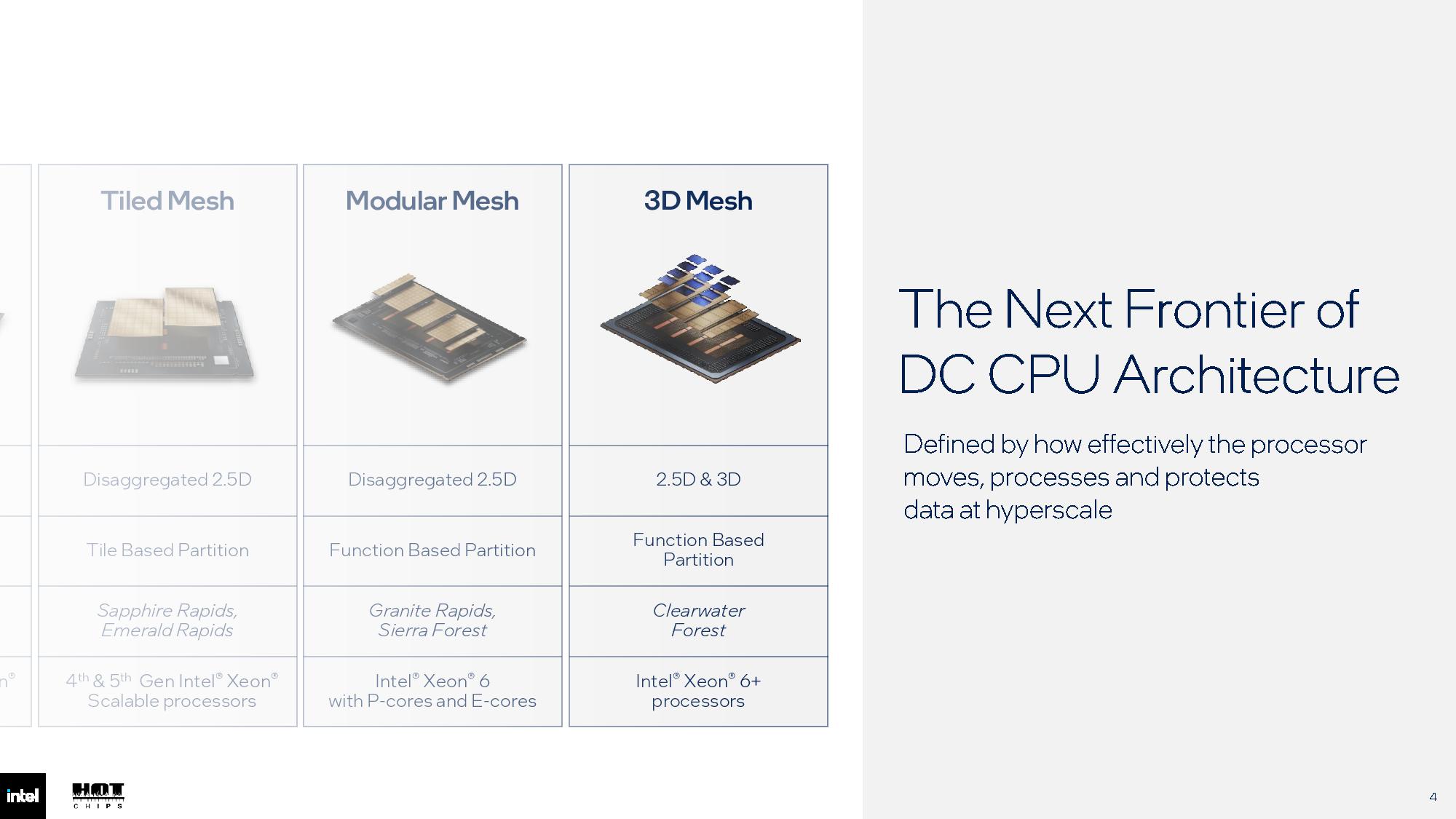

Bringing everything together are two advanced packaging techniques. Intel is once again using its own Foveros Direct 3D to bond the compute tiles to the base tiles, as seen with Xeon 6+ ‘Clearwater Forest’ CPUs. Intel is using UCIe-S to connect the fabric hub tiles to the cores via a copper connection. Notably, Intel isn’t using its own Embedded Multi-die Interconnect Bridge (EMIB) that it’s broadly deployed in past products.

Intel Xeon 7 ‘Diamond Rapids’ compute chiplet

Intel Hot Chips 2026 slides. — (Image credit: Intel)

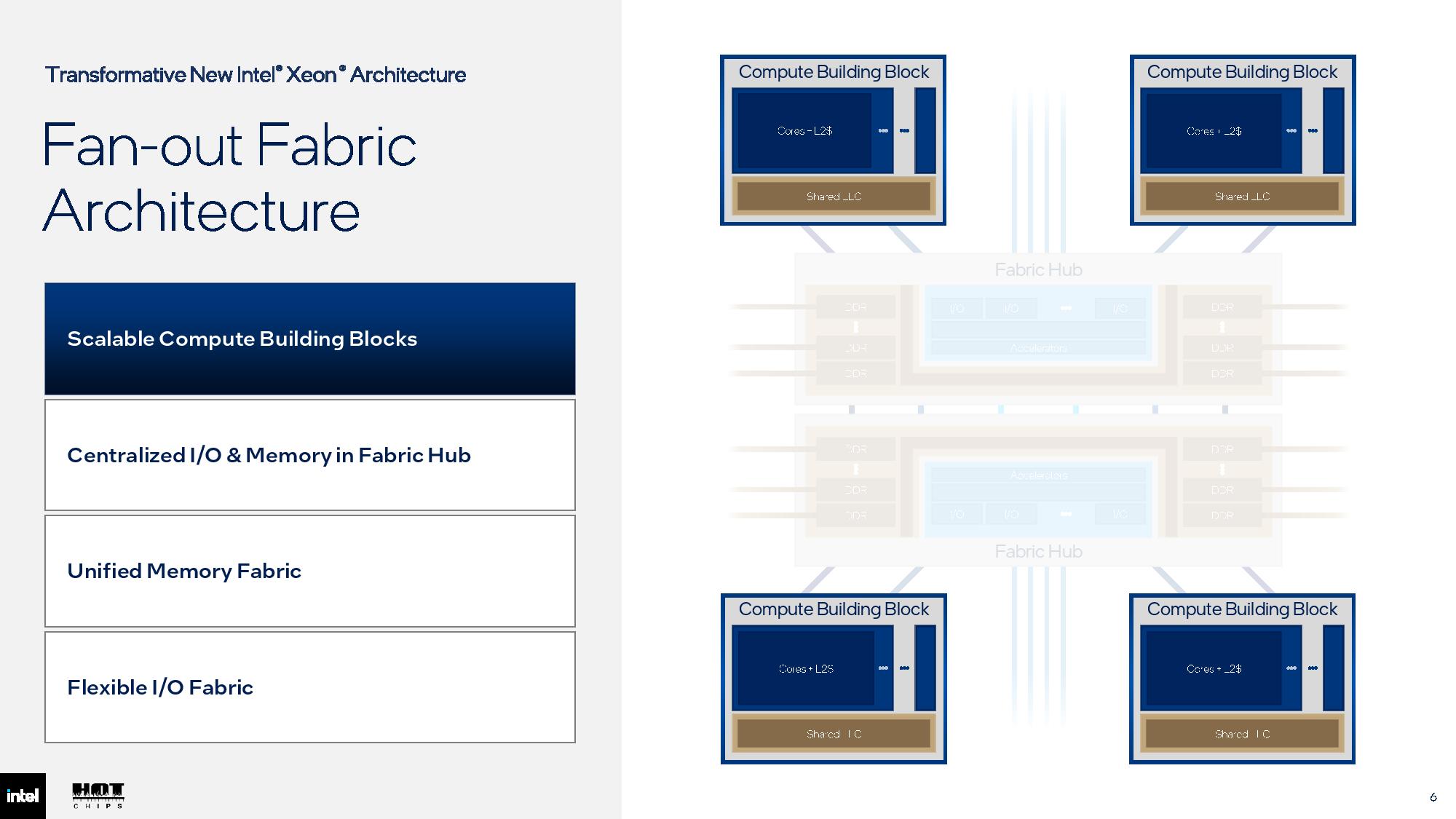

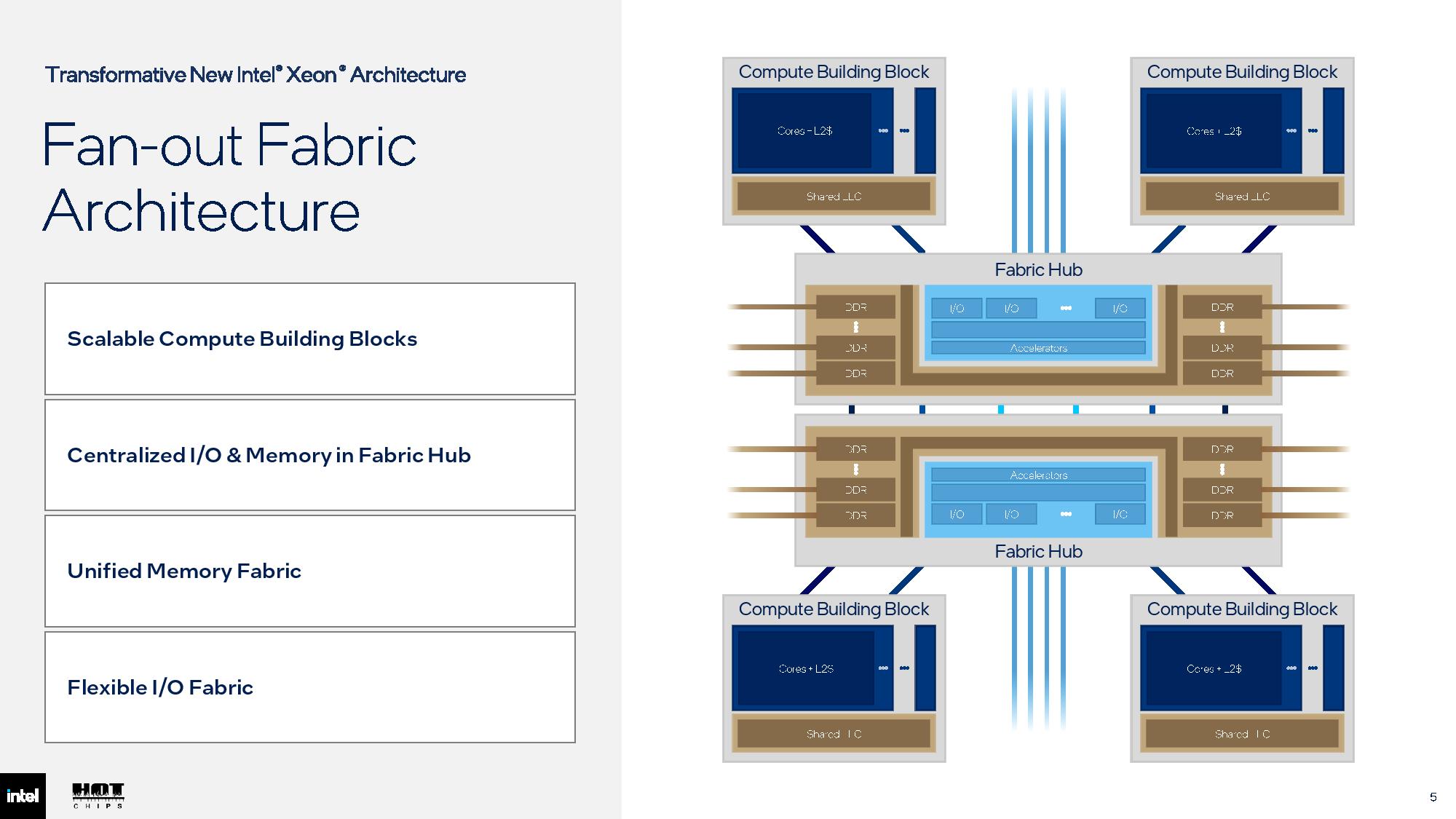

Diamond Rapids is built with four Compute Building Blocks, each of which includes four core chiplets that house 16 P-cores each. The cores have access to private L2 within each chiplet, and they share an L3 cache located on the base tile. The chiplets are connected to the base tile with a 3D crossbar, packaged with Foveros Direct 3D.

Within each CBB, there’s 3D packaging, but Intel leverages 2D communication via a UCIe-S interconnect to connect the CBBs to two centralized fabric hubs, allowing the cores (and caches) to communicate with each other. Although there are two fabric hubs, each of the CBBs is connected to both fabric hubs, so communication routes are clear across the chip.

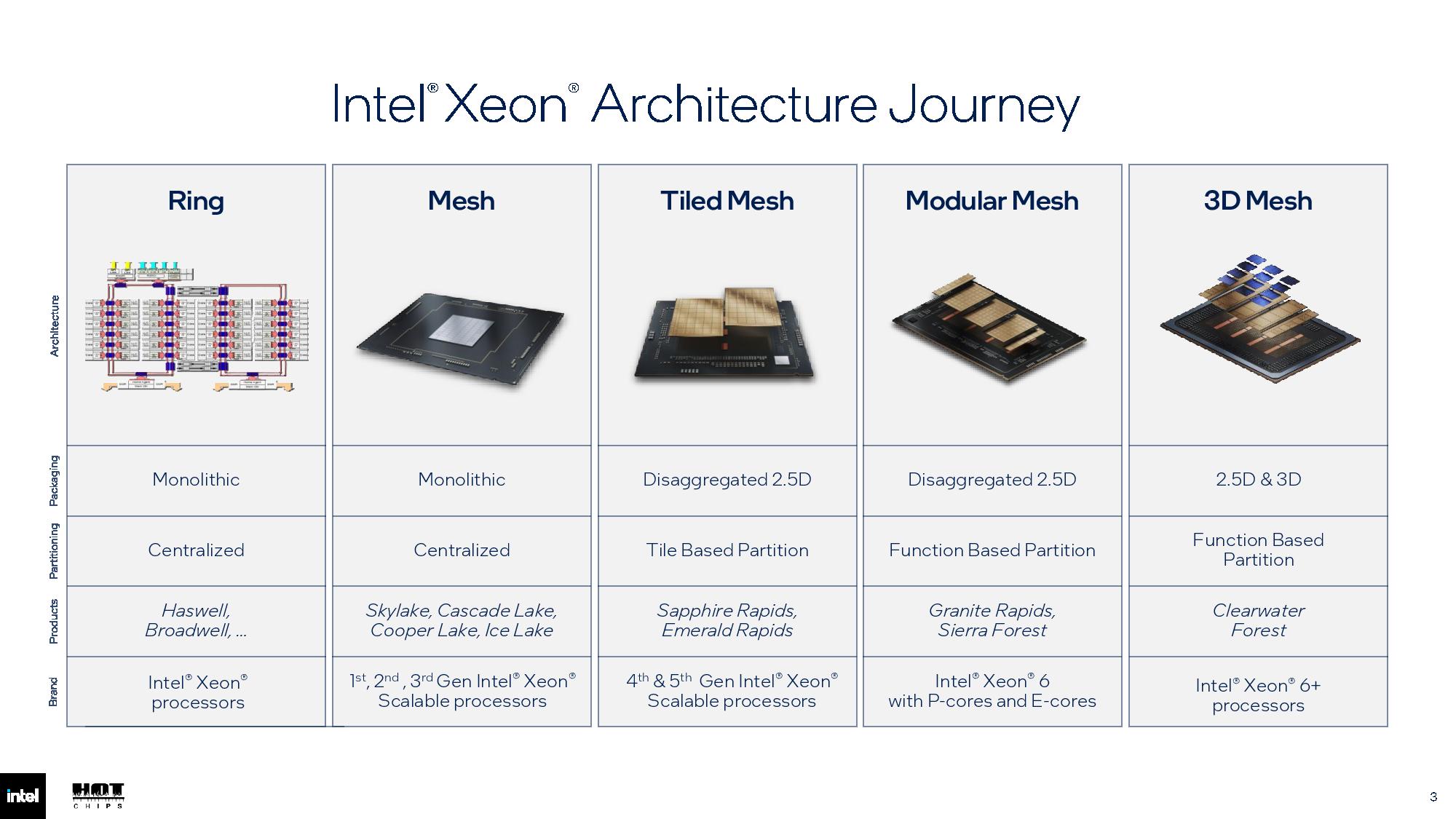

Compared to Granite Rapids, Intel has quite literally flipped the layout, centralizing memory and I/O while pushing the cores out to the edges of the chip. It’s much closer to a layout we’d expect to see from AMD.

Thermal improvements will likely follow. With the highest-clocked and hottest components pushed out to the edges, there’s much less concern for hot spots in the middle of the chip, as is the case with Granite Rapids-AP, where the cores are at the center.

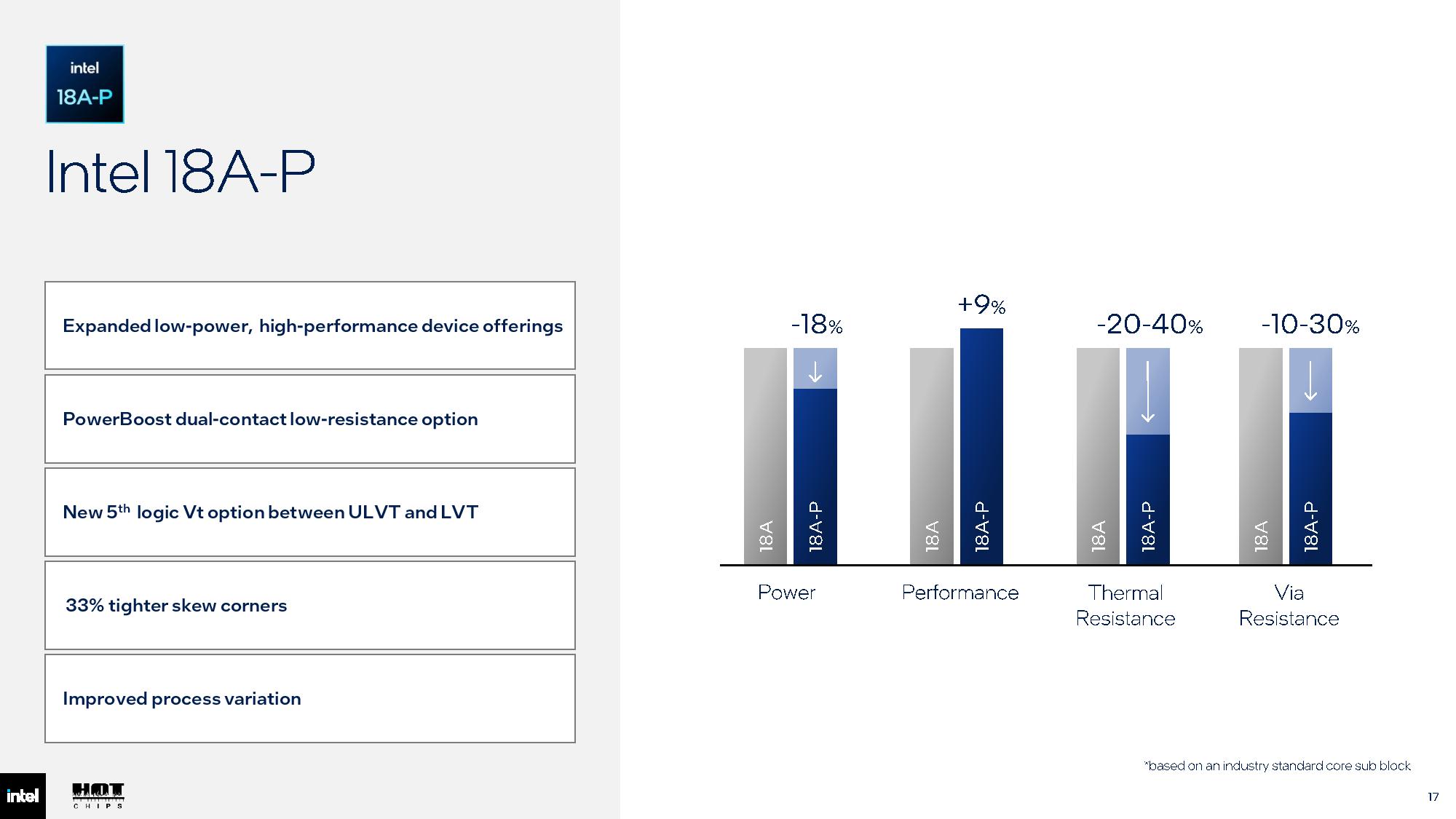

Intel is using its latest enhanced 18A-P node for the compute die, which is said to increase performance by 9% compared to 18A at peak performance, or operate at 18% lower power with iso-performance. Intel announced in June that 18A-P had entered risk production.

Intel Xeon 7 ‘Diamond Rapids’ fan-out fabric and memory, I/O subsystem

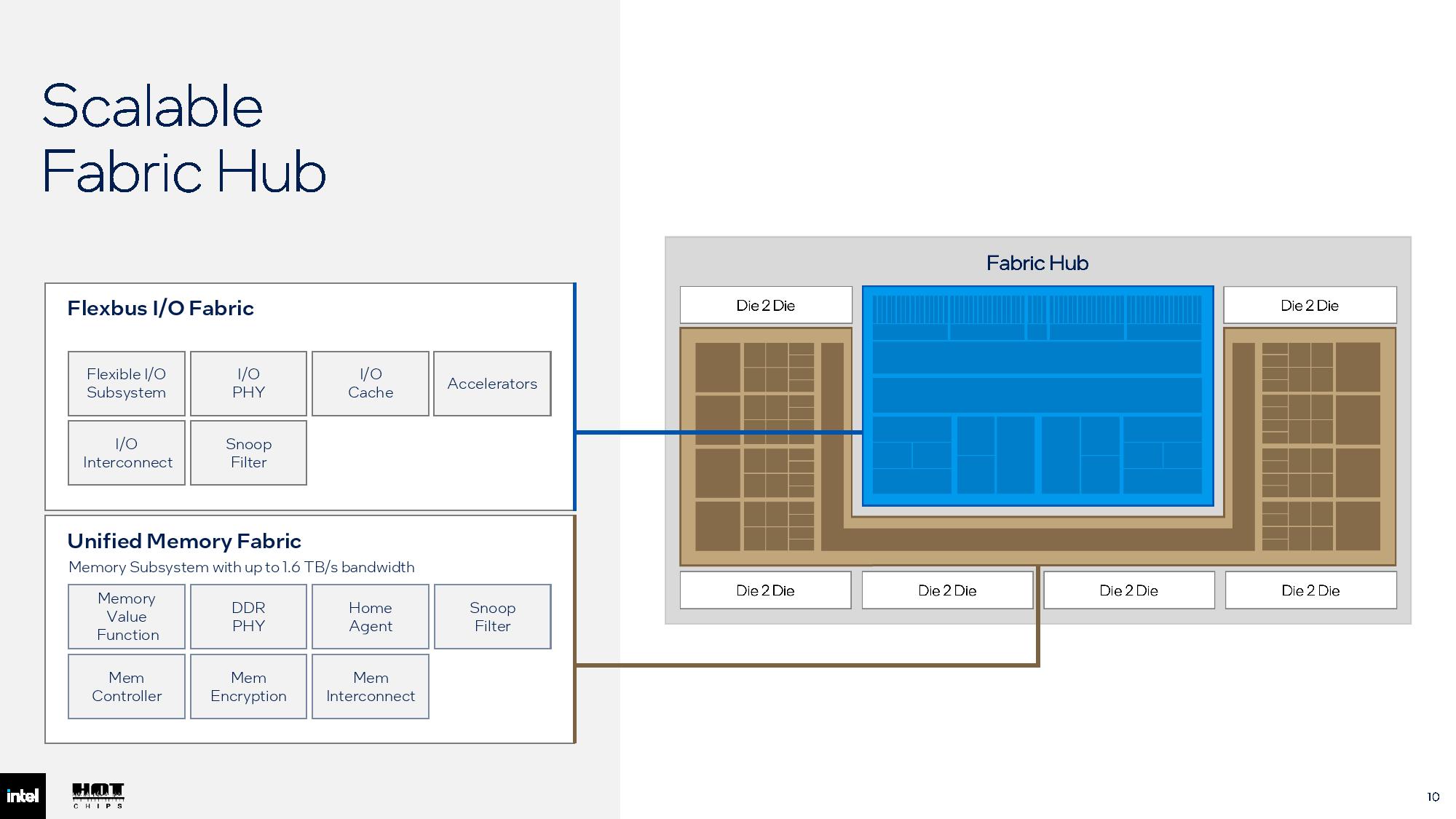

Intel scalable fabric hub. — (Image credit: Intel)

Diamond Rapids comes with 16-channel memory, supporting up to 8,000 MT/s with DDR5 and up to 12,800 MT/s with MRDIMMs. Although Intel bumped memory speeds with Xeon 6+ ‘Clearwater Forest,’ we’re now seeing fast DDR5 support on a P-core Xeon, and with an expansion to 16 channels (Granite Rapids topped out at 12 channels).

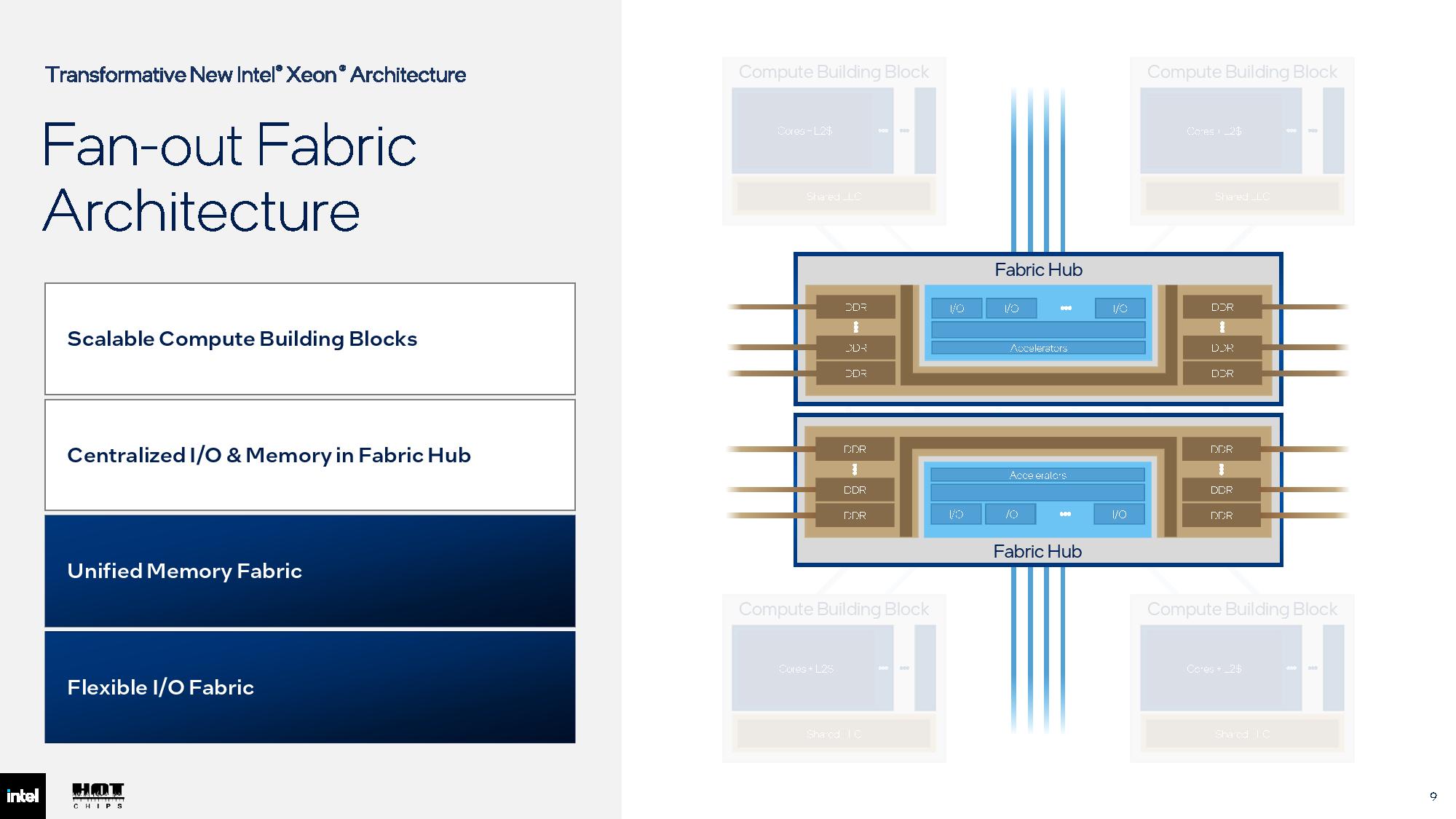

Intel centralizes all of the hardware for memory and I/O communication in the middle of the chip across two tiles (the fabric hubs), and each CBB can communicate with both fabric hubs.

Intel I/O fabric. — (Image credit: Intel)

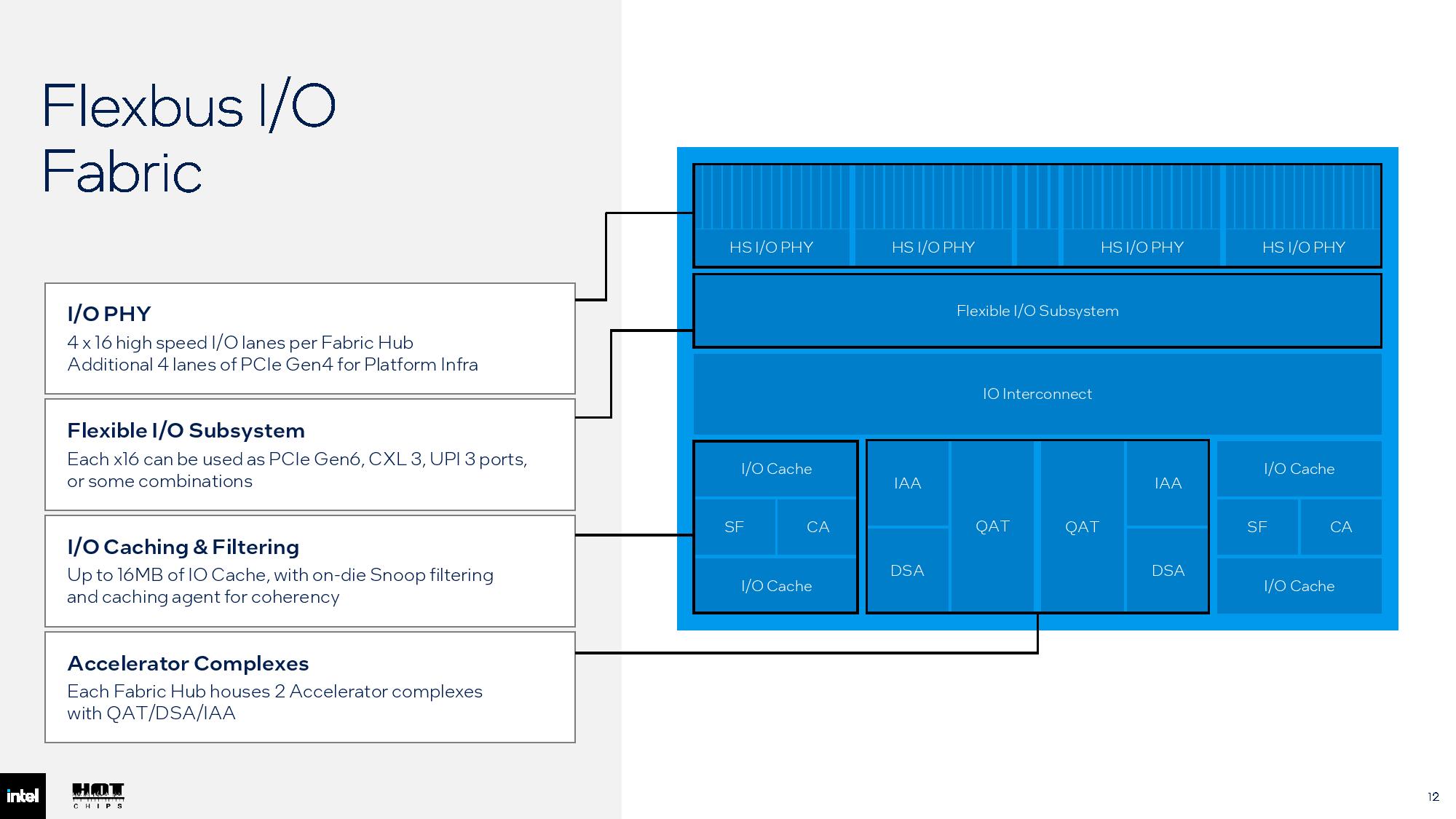

Double-clicking into the diagram at the top of this section, you can see the layout of the I/O system above. Across the chip, Intel supports 128 lanes of PCIe 6.0, CXL 3.0, UPI 3, or some combination thereof, courtesy of the flexible I/O subsystem. Intel also includes four PCIe 4.0 lanes (a total of eight per CPU) for platform use.

The I/O fabric also includes complexes for the various accelerators on-chip in Diamond Rapids, including Intel QuickAssist Technology (QAT) and In-Memory Analytics Accelerator (IAA).

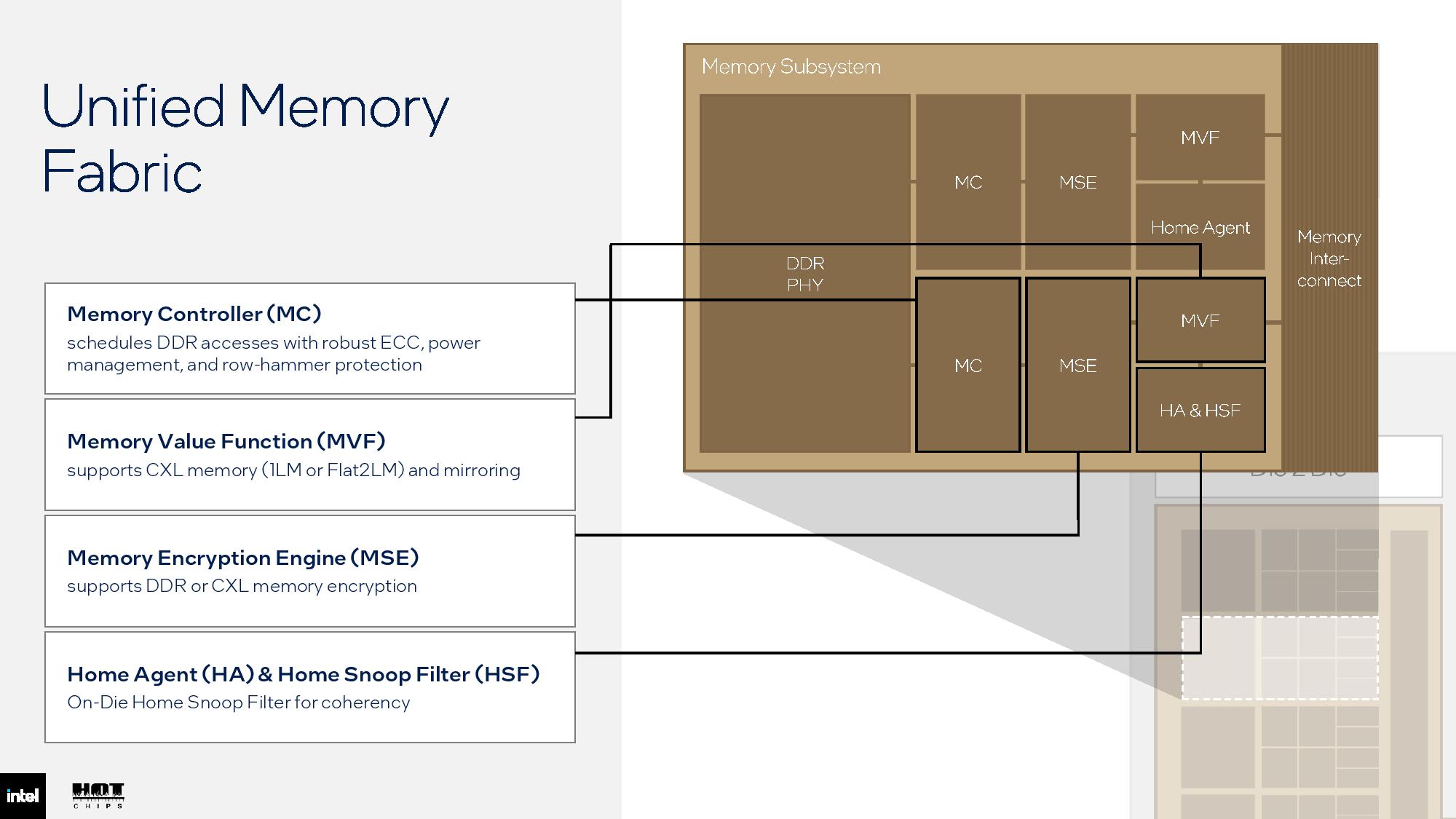

Intel Diamond Rapids memory fabric. — (Image credit: Intel)

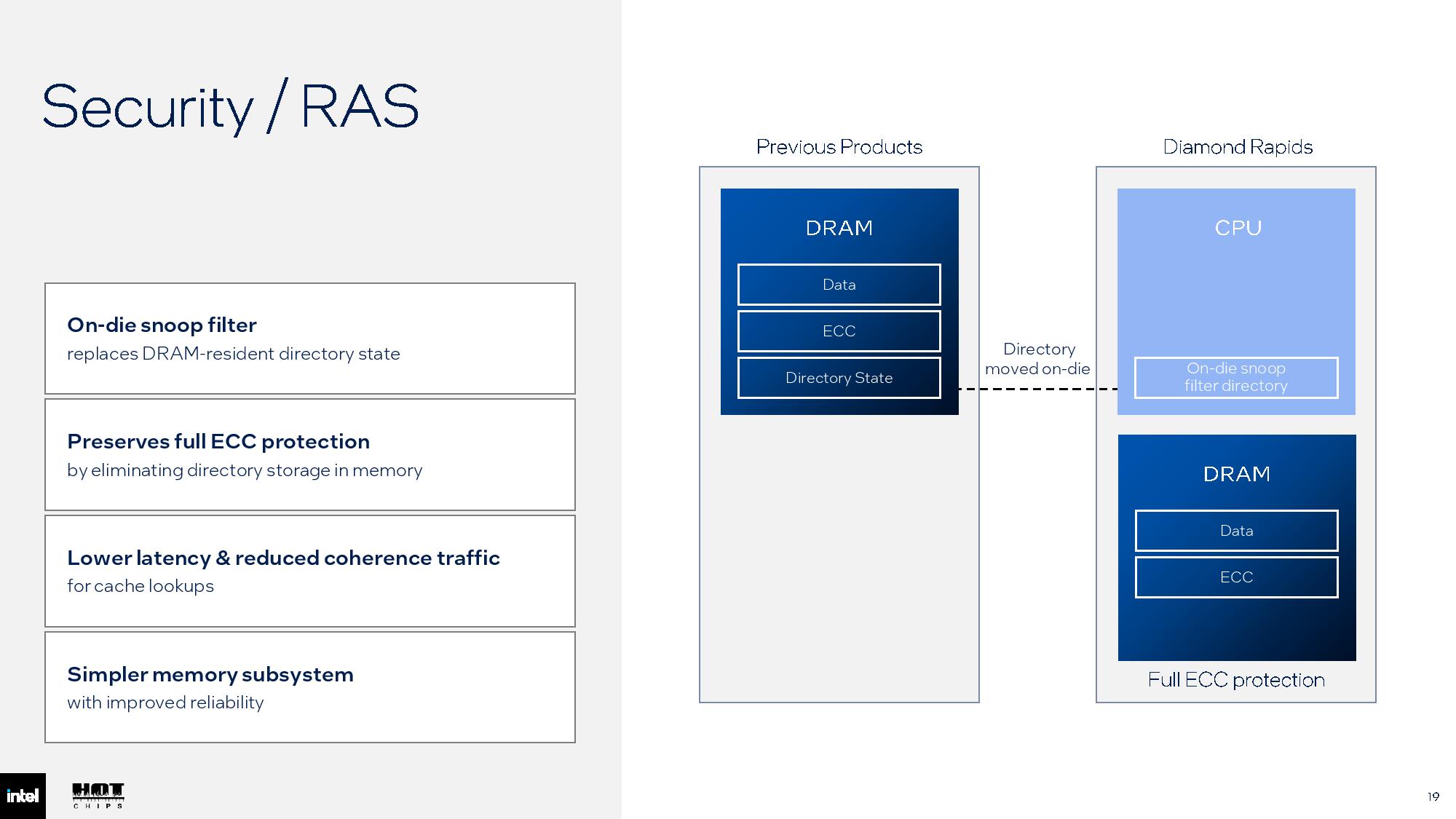

In the memory fabric, you can see the standard flow through the DDR PHY into the memory controller, but Intel includes some special sauce at the end of the chain, notably an on-die snoop filter. A snoop filter is a directory to maintain cache coherency, and moving it onto the CPU removes directory storage and cache coherency tasks from the memory.

Interestingly, Intel isn’t leveraging its advanced EMIB packaging to connect the fabric hubs to the CBBs. Instead, Intel is using a standard UCIe-S connection through copper in the substrate. Intel says that UCIe-S offered a “low-latency uniform connection to all of the memory hubs” that “made the most sense for Diamond Rapids.”

There were a handful of questions around UCIe-S versus an advanced packaging technique, UCIe-A. Intel says the choice mainly came down to distance, with UCIe-A requiring multiple “hops” depending on the distance. UCIe-S provides uniform access across longer distances, enabling lower latencies across the entire chip.

Intel Advanced Performance Extensions and AVX 10.2 support in ‘Diamond Rapids’

Although it’s more of a footnote in the headline reveals about Diamond Rapids, the next-gen Xeon CPUs mark an important milestone in Intel’s journey with AVX-512 and Intel’s Advanced Performance Extensions, or APX, which has been described as a modernization of the x86 ISA. Both were described in 2023, and now they’re showing up in Diamond Rapids.

First, AVX. Expectedly, Diamond Rapids marks the move to AVX 10.2, which is supported on both P-cores and E-cores (AVX 10.1 only worked on P-cores). AVX 10.1 served as a transition step off of AVX-512 and only supported 512-bit vector instructions. AVX 10.2 supports converged 256-bit vectors, enabling execution on both P-cores and E-cores.

Diamond Rapids also supports Intel’s APX. APX doubles the number of general-purpose registers from 16 to 32 with new encoding for registers 16 through 31. Intel says software will see a performance improvement when recompiled with APX, and without source code changes. We heard about APX support in Panther Cove nearly two years ago for the first time.

APX requires 10% fewer loads and 20% fewer stores in memory, according to Intel, and includes some key instruction updates like condition load and store. It doesn’t require a code change, either, with full compatibility with previous code bases.

Between AVX 10.2, AMX, centralized I/O and memory communication, and 18A-P, Diamond Rapids brings forth a lot of innovation that Intel has been talking about for a long time. Whether it’s too little, too late remains to be seen with the missteps around Granite Rapids.

Given the explosion of CPU demand for agentic workloads, Intel has a competitive part here that, at least, supports the latest updates to the x86 ISA and borrows a lot of key design points from AMD’s evolution with EPYC. Intel has continued to double down on Coral Rapids; however, the generation that will follow Diamond Rapids will reintroduce SMT to Xeon.
