Turtle Beach Command Series KB5 Review: A touchscreen and a numberpad in one keyboard?

We’ve seen a keyboard with a built-in macro pad, and a keyboard with a touchscreen and a separate, add-on numberpad, but what if you want a keyboard with a numberpad and a built-in macropad without having to spend an extra $100?

I guess that’s why there’s the Turtle Beach KB5 — a full-size, wired mechanical keyboard with low-profile switches, an 8,000 Hz polling rate, and a built-in 2.4-inch touchscreen that functions as a mini macro pad (with six buttons). It’s got the built-in numberpad, unlike the Corsair Galleon 100 SD and the Turtle Beach KB7, as well as the touchscreen / macro pad, though its version is about half the size. Still, maybe that’s all you really need. The KB5 is also significantly cheaper than both of those keyboards, which retail for $300 and $200, respectively.

The Turtle Beach KB5 is available now, in black, for $149.99.

Design and Construction of the KB5

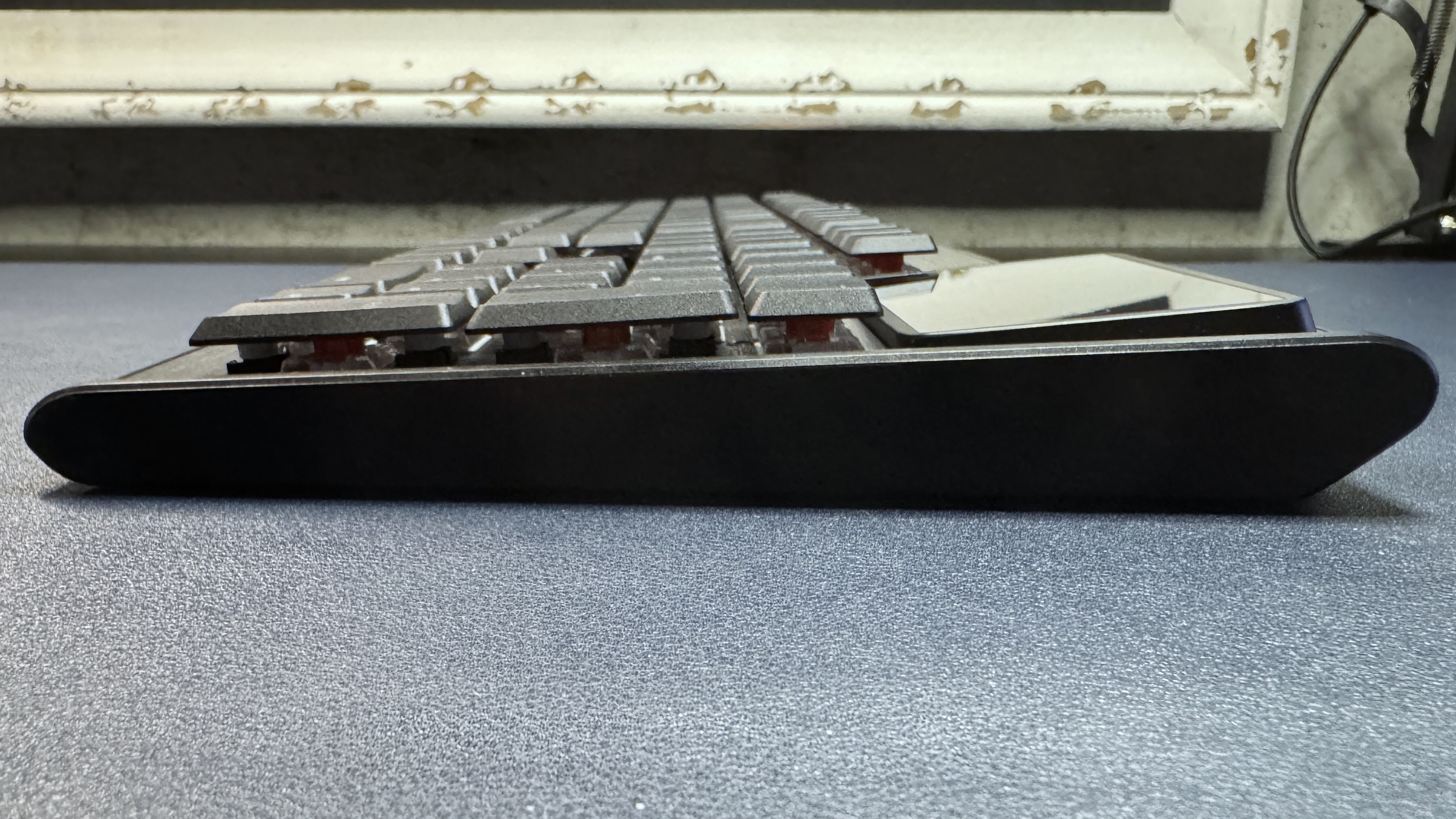

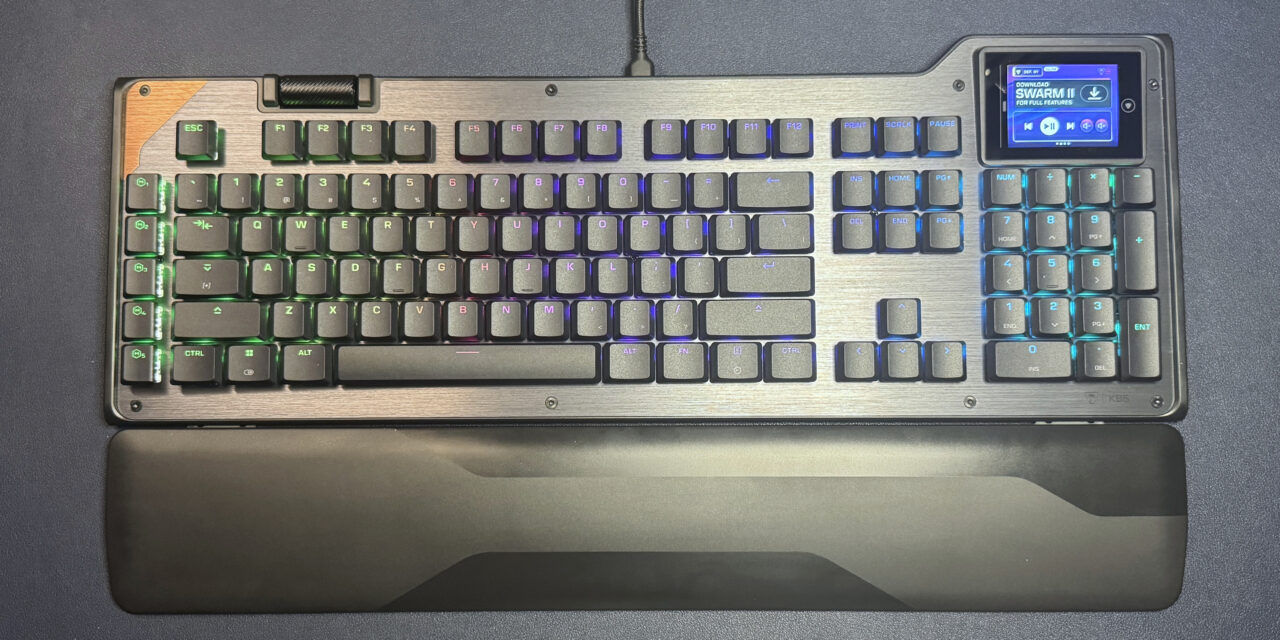

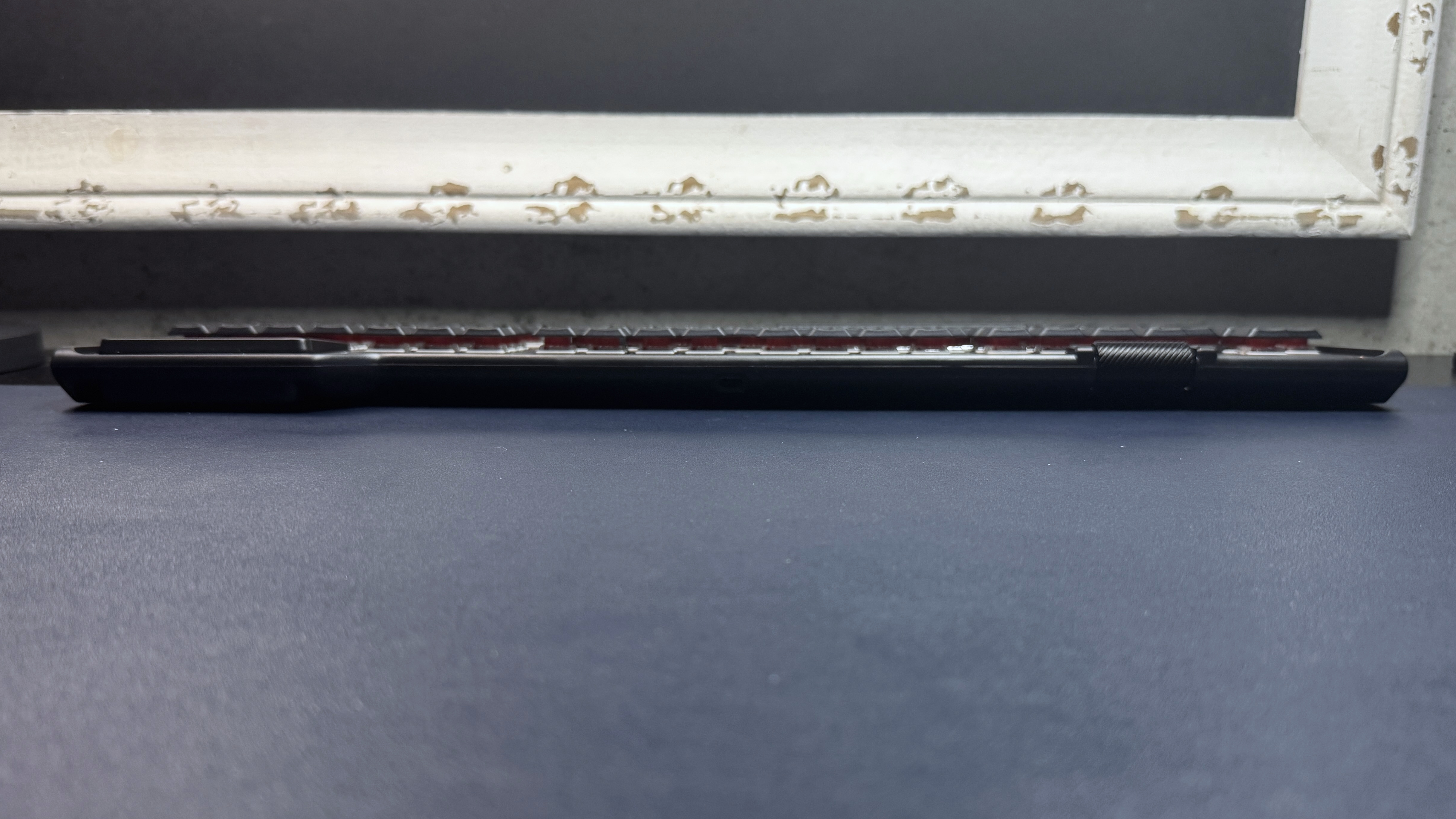

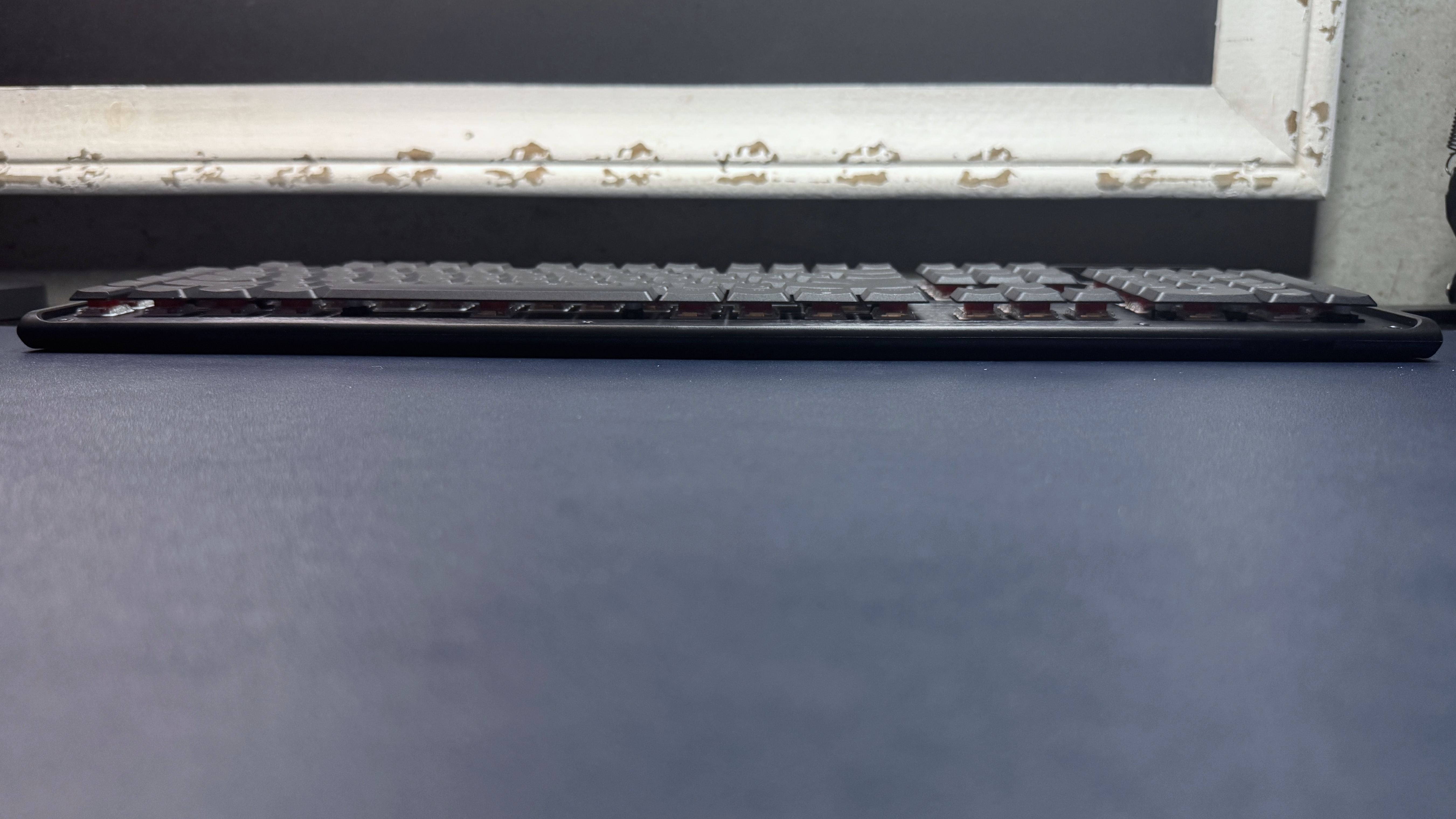

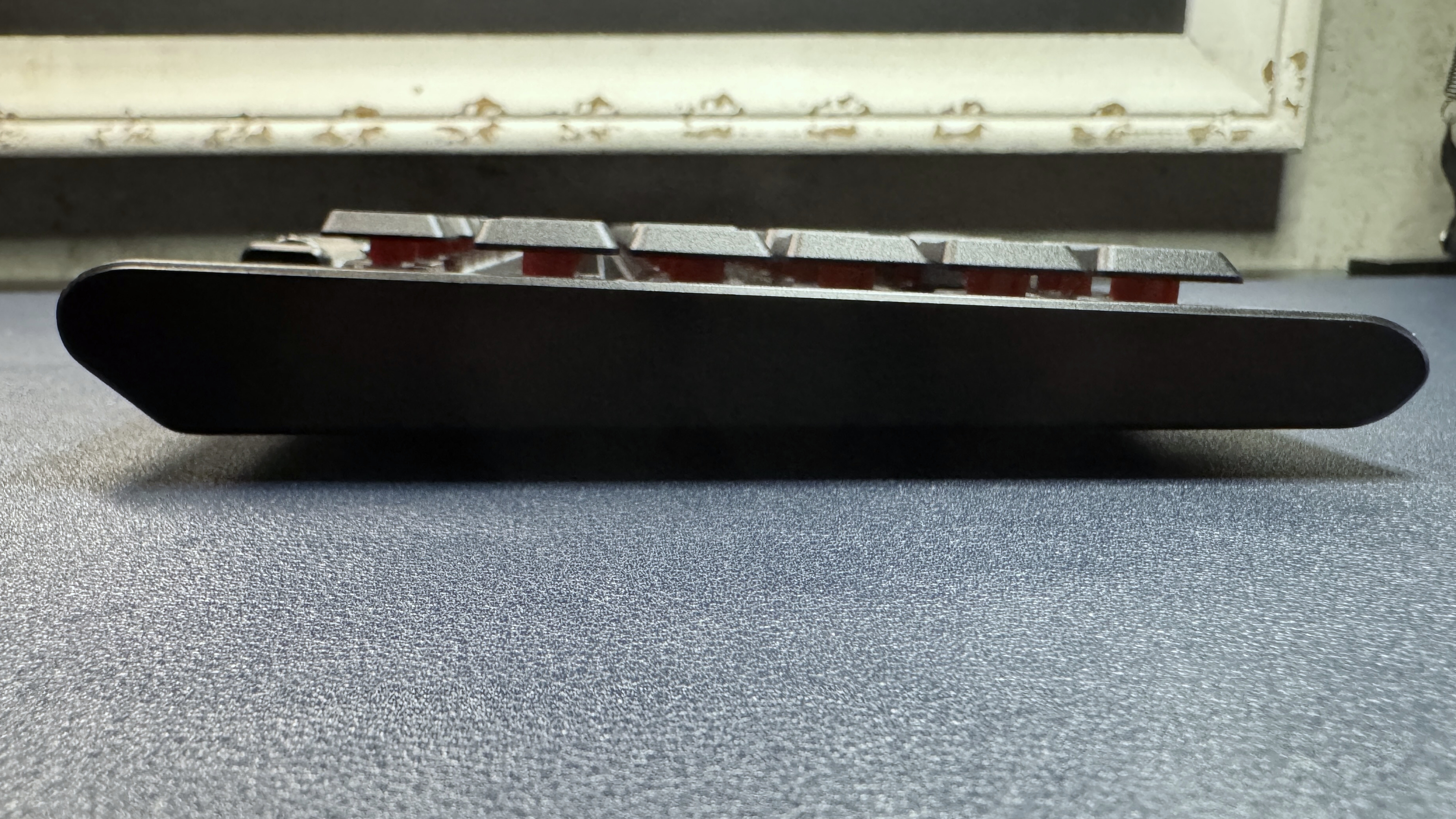

The KB5 is a full-size low-profile wired mechanical gaming keyboard with extra macro keys, a volume roller, and a full-color 2.4-inch touchscreen in the upper-right corner (above the 10-key numberpad). It has a roomy layout and is slightly larger than the average full-size keyboard, measuring approximately 18.78 inches (477 mm) wide by 6.89 inches (175 mm) deep. It’s 1.06 inches (27mm) thick at its thickest point, including the keycaps.

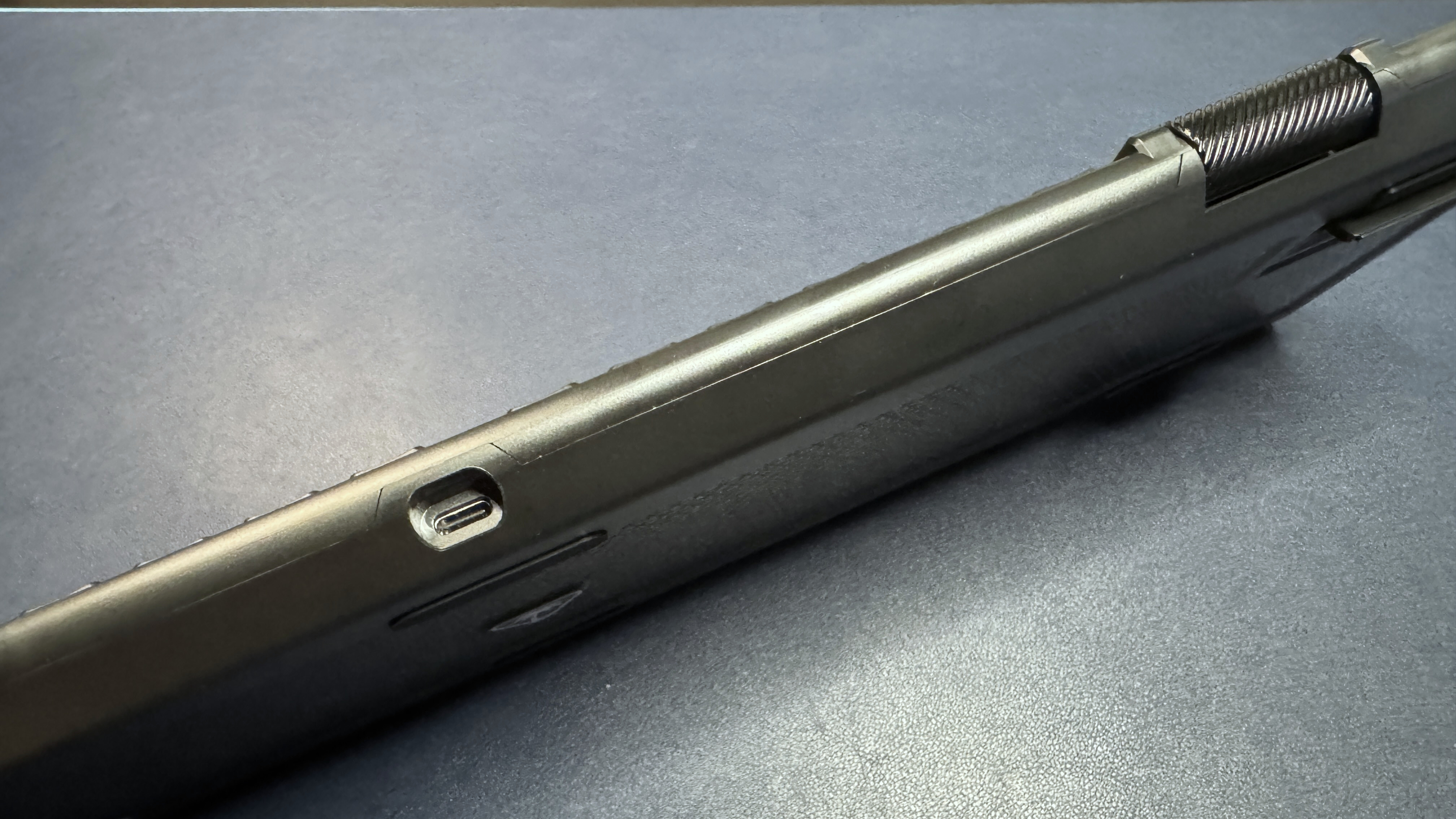

The KB5 has a silver brushed-aluminum top plate with a coppery accent in the upper-left corner. It has a sturdy metal roller bar on the top toward the left side — though it’s not really close enough to the left side to be in the corner, and I found it a bit awkward to have to reach over my function row to use the roller. I would have preferred it in a corner or even on the side, like the volume roller on the NZXT Function 2. It’s a nicely-built roller, however — thick, metal, clickable, and with etched diagonal lines for grip.

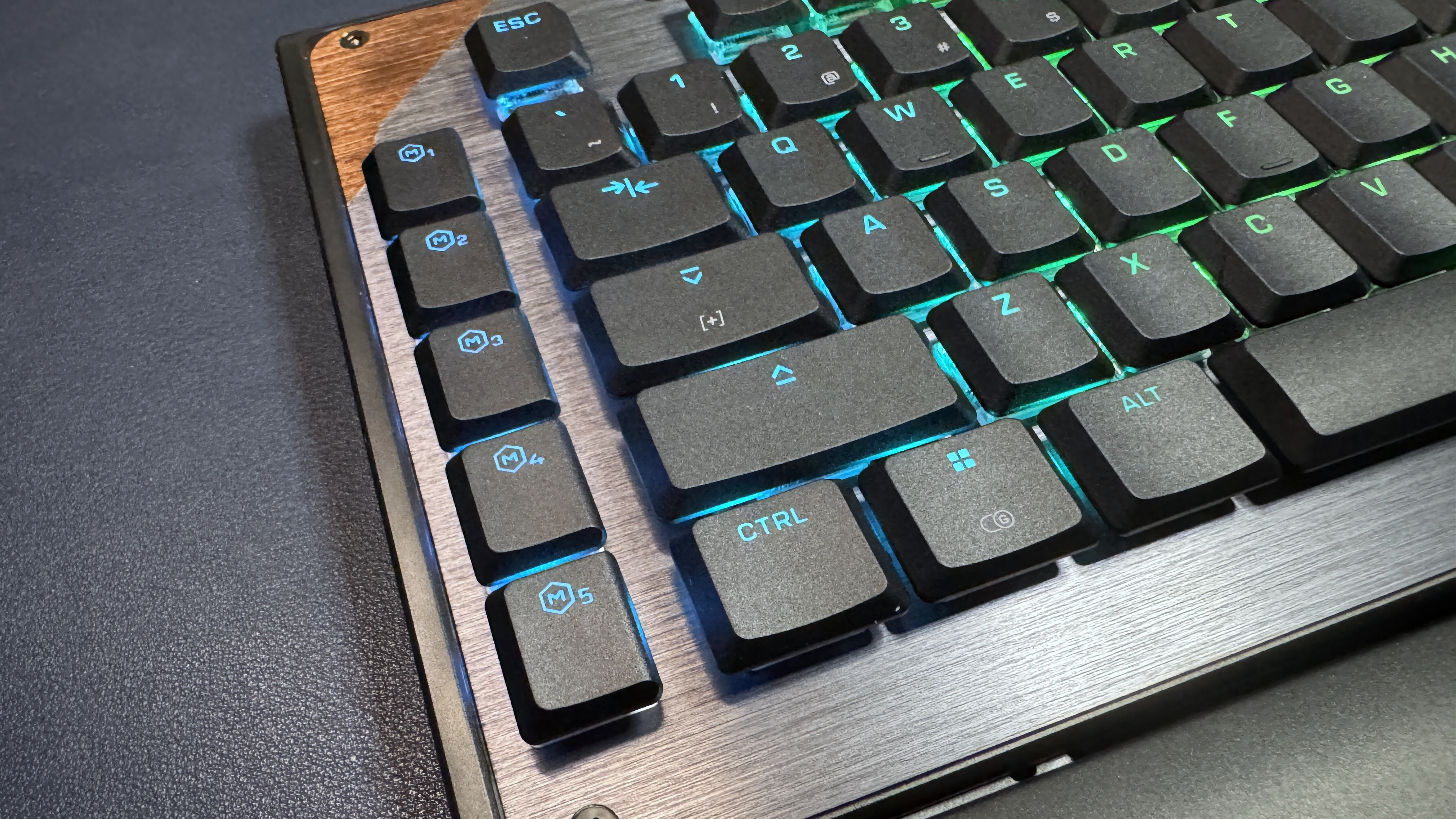

The keyboard also has a row of five macro keys on the left side, as well as a 2.5-inch color touchscreen in the upper-right corner, above the 10-key numberpad. The touchscreen bumps up past the rest of the keyboard — the touchscreen side is just under 7 inches deep, while the other side is about 6.25 inches deep — so it doesn’t cut into your keys. The KB5 has a full function row, a full 3×2 navigation cluster, arrow keys, and a full 10-key numberpad, along with the standard alphanumeric keys.

The KB5 features Turtle Beach’s (formerly Roccat’s) signature aesthetic — an open board with flat, shallow keycaps that leave the switch exposed, which makes for both easy cleaning and brighter, more visible RGB lighting. The keycaps are low-profile double-shot PBT, with shine-through legends; the board comes with four textured keycaps that you can use to replace the W/A/S/D keys (or, I guess, any four keys) for better recognition.

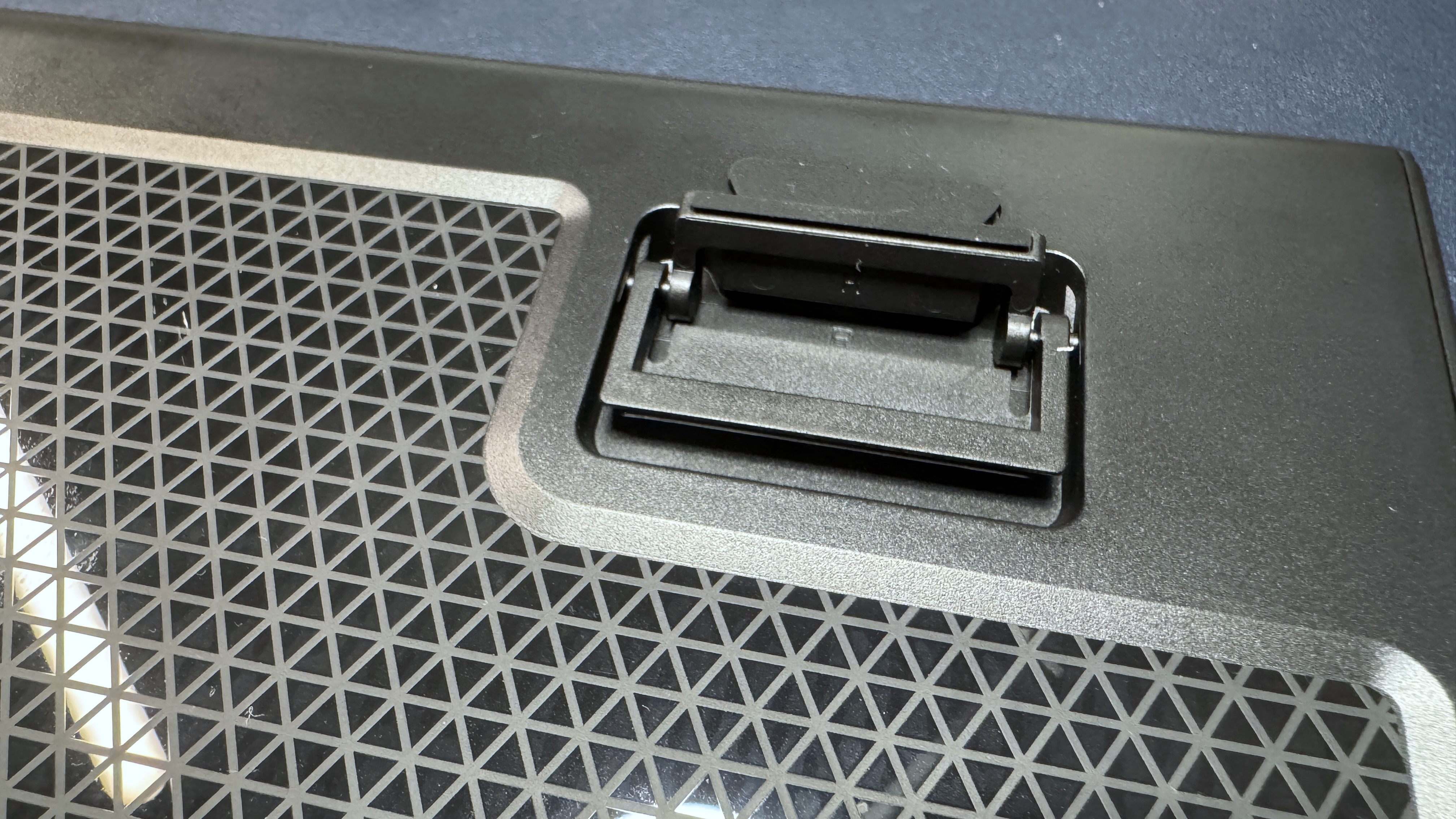

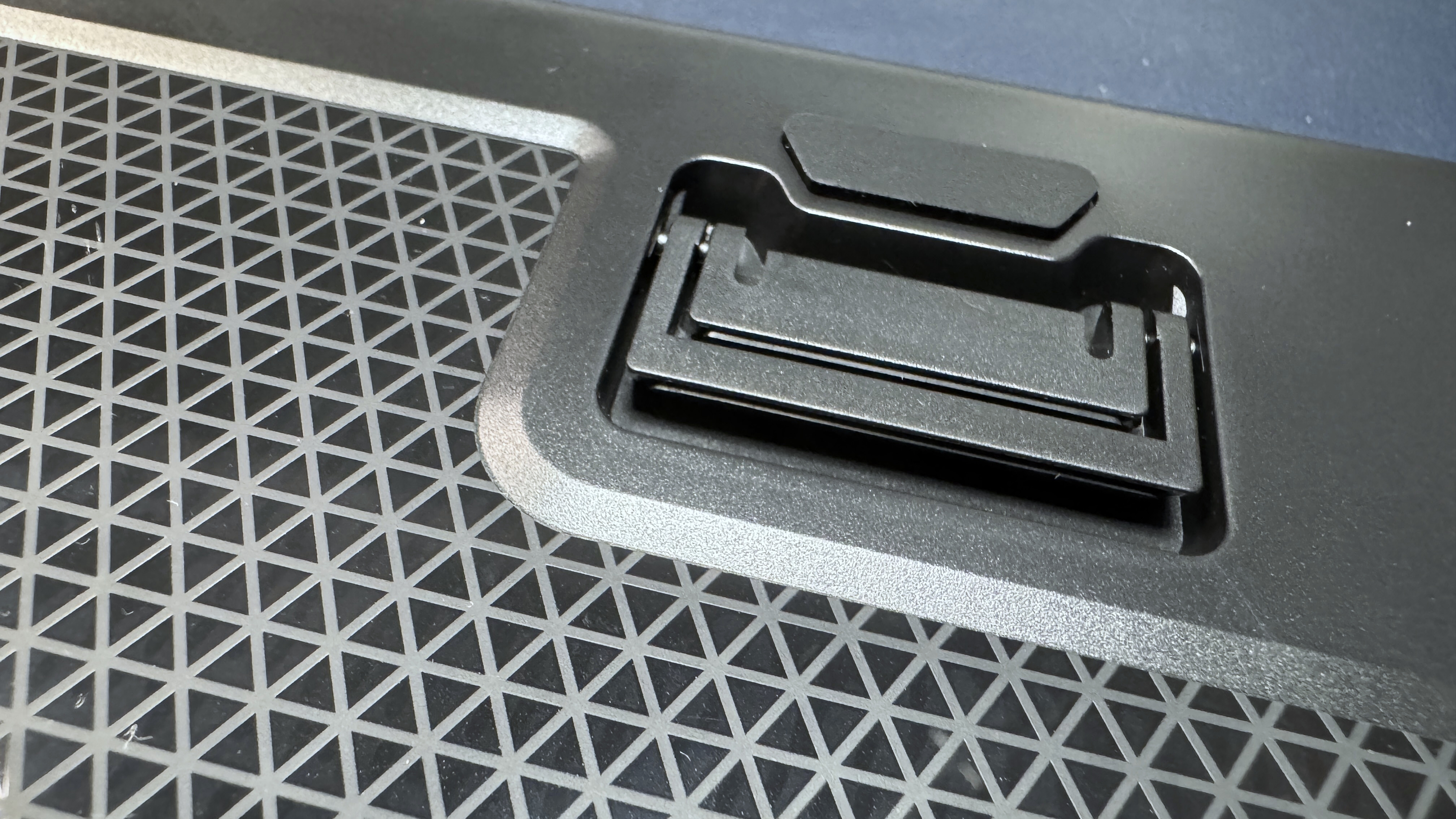

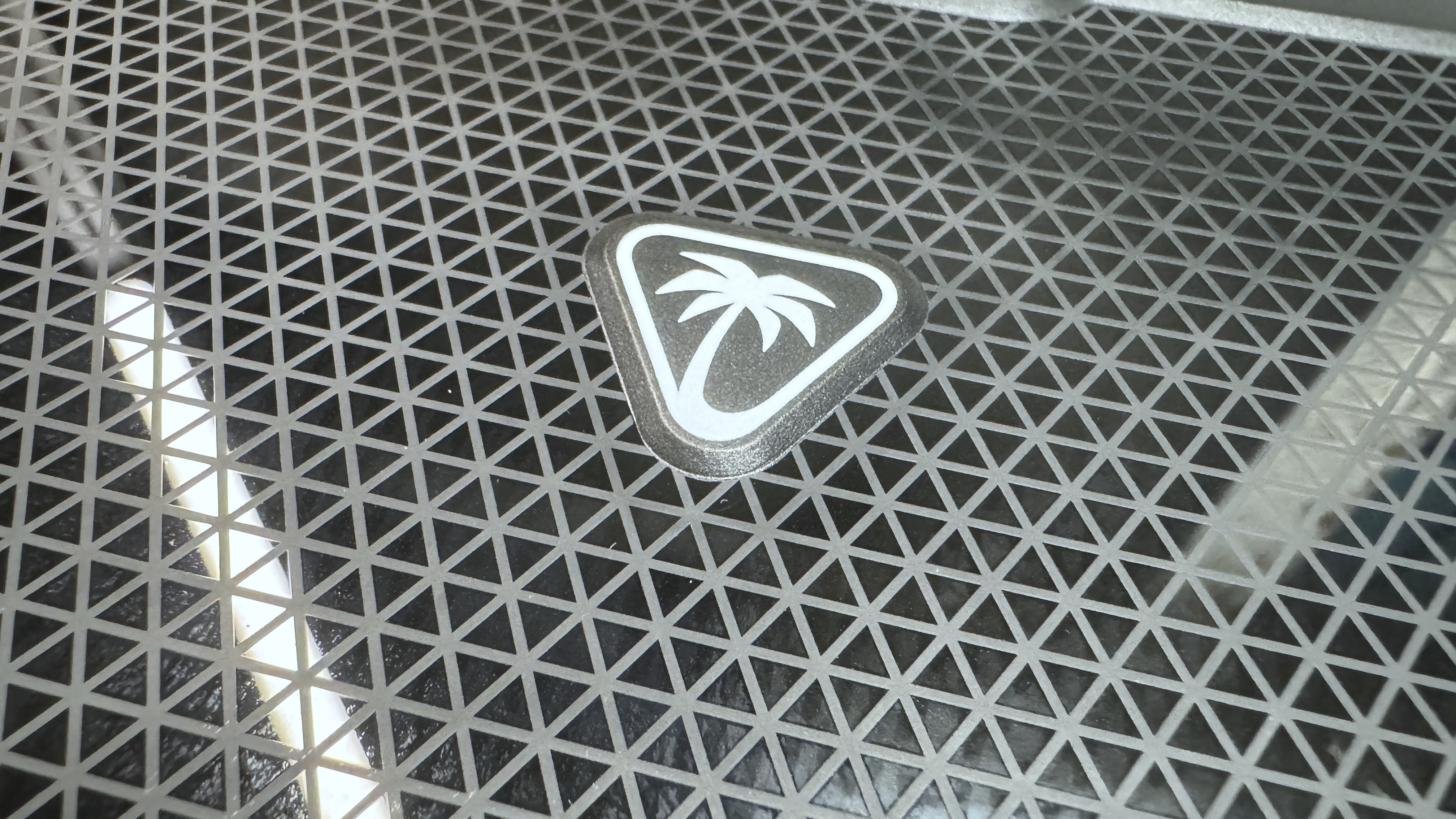

The bottom of the board is plastic, with six rubber anti-slip pads and two sets of plastic flip-out feet for angling the keyboard toward you. It’s a fairly lightweight keyboard, weighing just under 2 pounds (1.96lbs / 887g), not including the wrist rest (which weighs an additional 7.5 ounces / 213g). This is about the same as the Logitech G515 Lightspeed, though the G515 is a TKL while the KB5 is full-size (plus a touchscreen and macro keys).

In the box, the KB5 comes with a plastic wrist rest, a 5.9-foot (1.8m) USB-C to USB-A cable, four textured keycaps for replacing the W / A / S / D keys, and a keycap puller.

Specs

Typing and Gaming Experience on the KB5

The KB5 comes with Turtle Beach’s Titan low-profile linear switches, which are rated for up to 50 million keypresses and have an actuation point of 1.2mm and a force of 42gf. These are traditional low-profile mechanical switches — not magnetic Hall Effect switches like you’ll find on the KB7 (and KP7). They’re linear, which means a smooth keypress with no audible or tactile bump, and they’re pre-lubed so they’re pretty smooth.

While I’m not a huge fan of linear switches, the KB5’s are quick and stable, and you get a decent little ‘thunk’ when you bottom out on the keyboard’s aluminum top plate. The typing experience is very similar to that of the KB7, which is to say that it’s very pleasant for a mainstream gaming keyboard with low-profile linear switches.

The keyboard has flat, shallow keycaps made of double-shot PBT. They have a slightly matte texture and should resist shine better than ABS keycaps, but I’m not fully convinced that’ll be the case (maybe they just feel cheaper because they’re thinner, overall, than regular keycaps, though). The keycaps are wide, with slightly curved tops, and the keyboard is roomy — I didn’t have any problem getting used to the layout for the most part, though the extra row of macro keys on the left did throw me off a few times (this happens whenever there’s an extra row of macro keys).

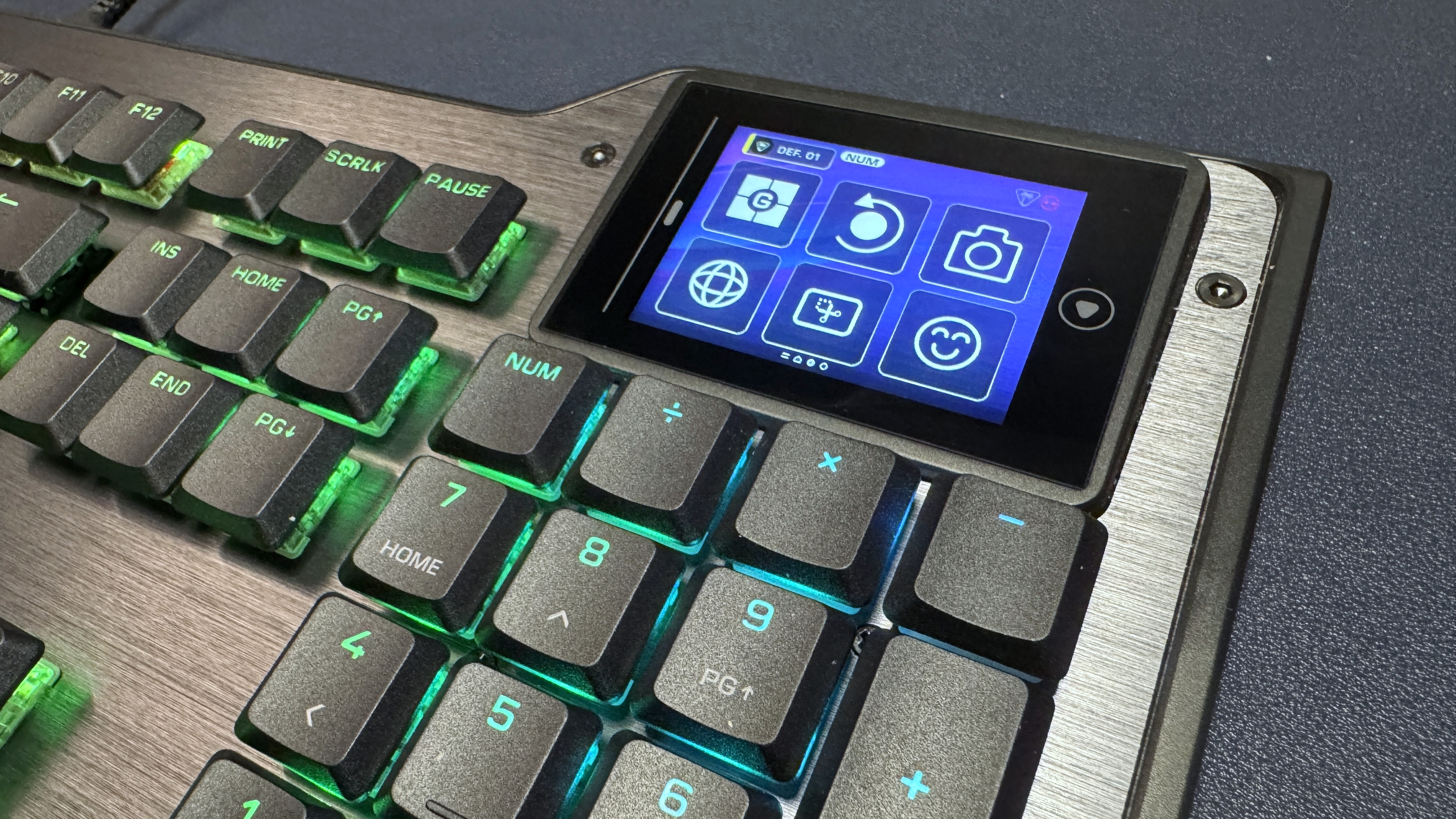

The touchscreen is located above the numberpad, and is fairly responsive. It responds to both taps and swipes (you can swipe through “pages” of controls / buttons), and I found the 2 x 3 layout a little more intuitive to navigate than the KB7’s much larger layout — though still not as intuitive as it would be with tactile buttons, like the Corsair Galleon 100 SD has. In addition to the six customizable “buttons” on the touchscreen, there’s also some other info displayed at the top — your current profile (you can switch between profiles by tapping this) and some keyboard info (e.g. numlock, caps lock, scroll lock).

The KB5 is also a solid keyboard for gaming, thanks to its quick, responsive linear switches and 8K polling rate. While it doesn’t have magnetic switches like its pricier sibling, it does implement Turtle Beach’s ReacTap, which is a software solution similar to simultaneous opposing cardinal directions (SOCD).

Features and Software of the KB5

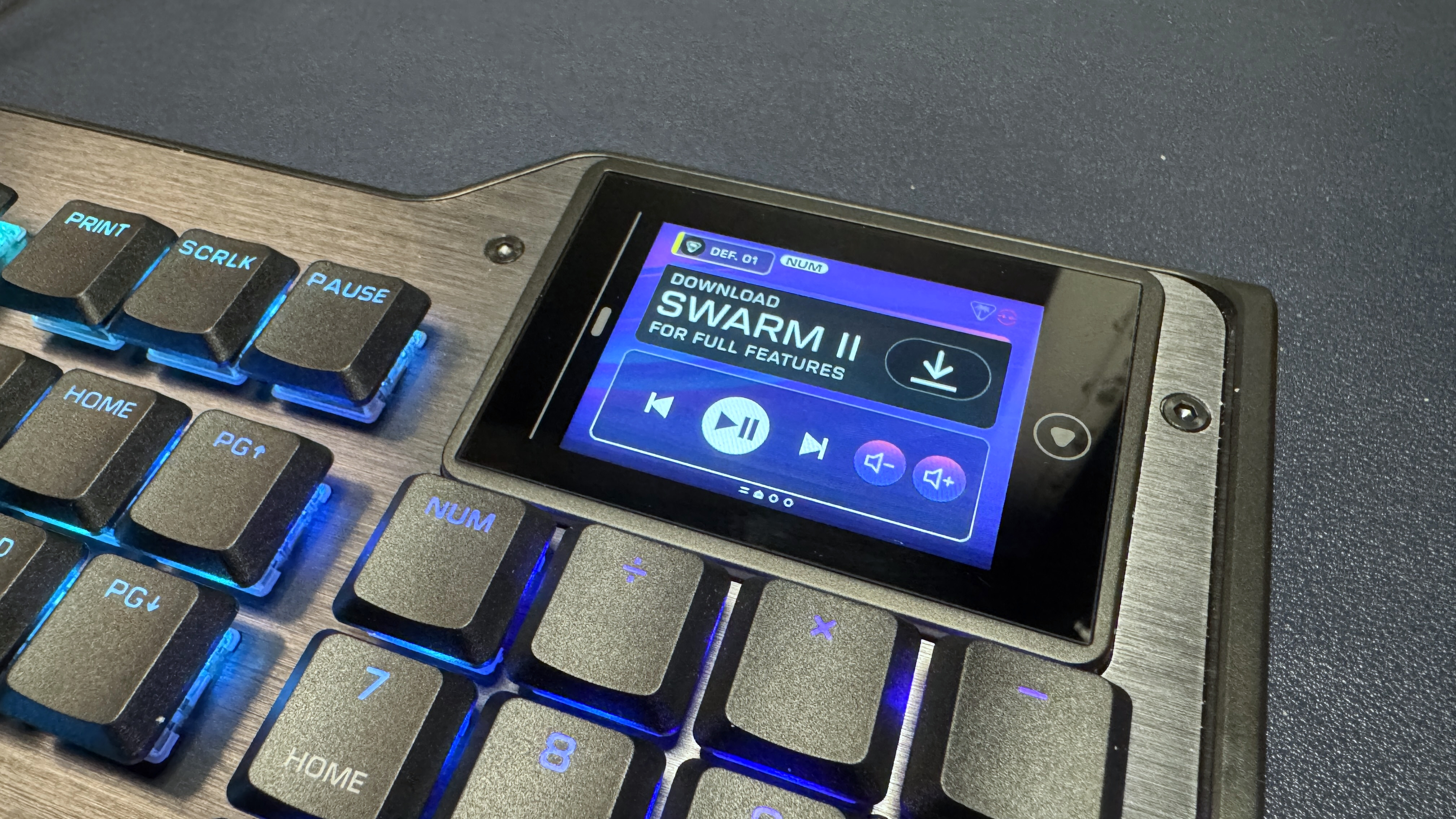

Like all Turtle Beach products, the KB5 ships with firmware from 2001 (or at least it feels like it) and requires at least 16 mandatory updates before it can be used with the brand’s Swarm II software. I’m exaggerating, of course — but not much.

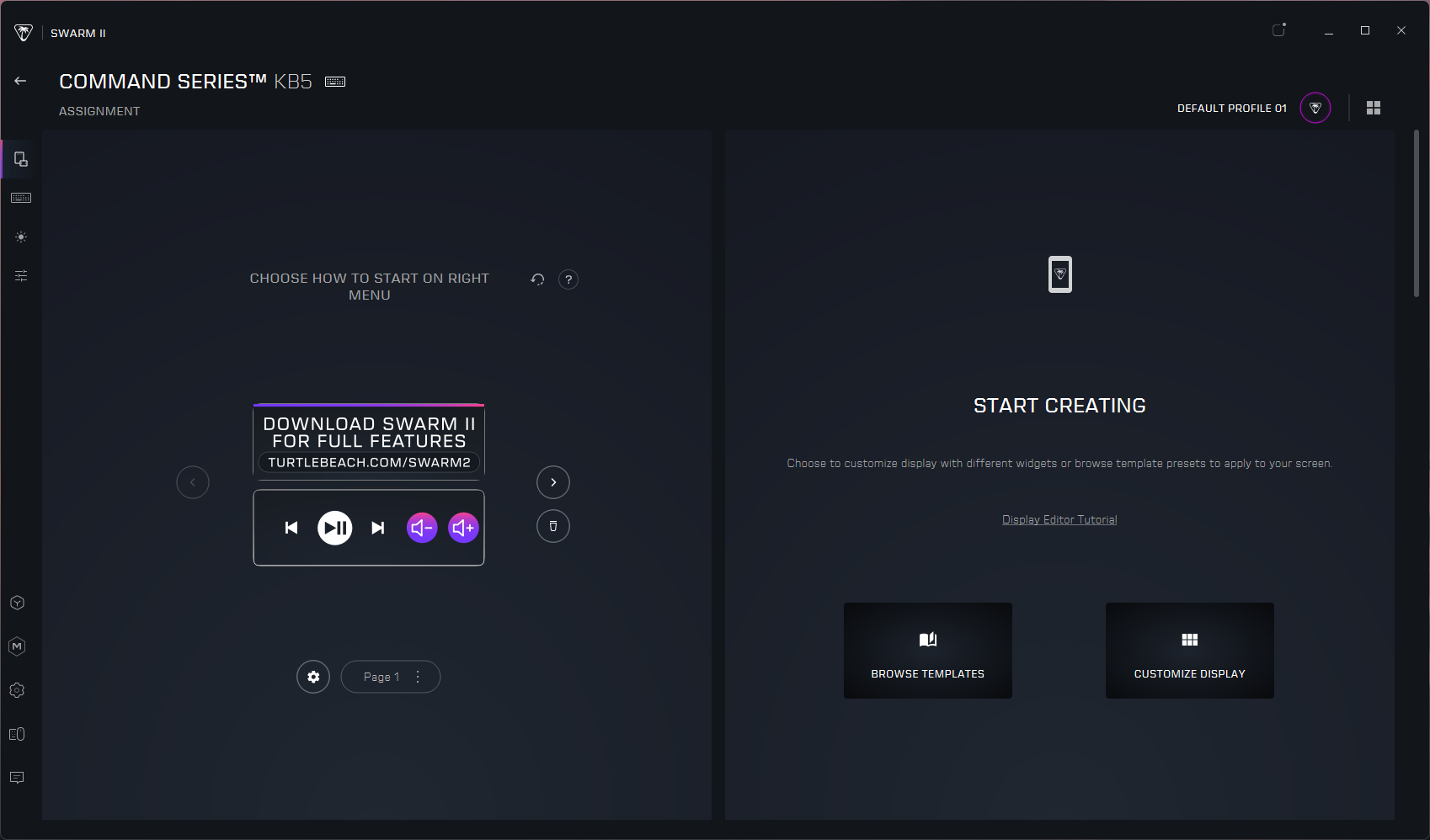

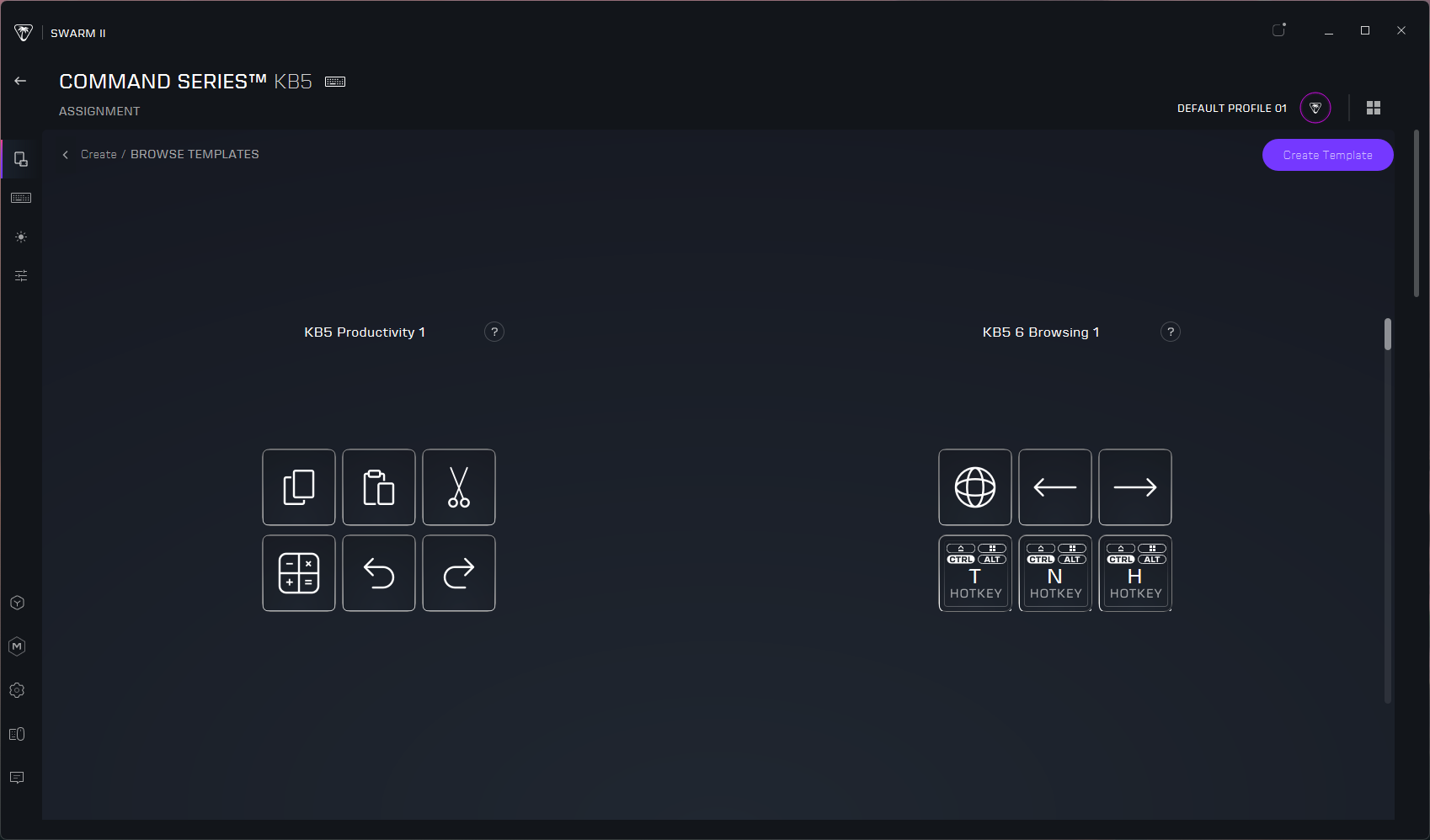

Once I managed to get the KB5 up to date on firmware (and Swarm II up to date on software), I was able to customize the touchscreen, keyboard, and lighting. Swarm II is kind of mandatory for this keyboard, as you can’t really customize the touchscreen without it — and the touchscreen is a large part of the selling point here. There’s not a ton you can do with the touchscreen that you can’t do with regular keys, at the moment. There are options for keyboard / Windows / multimedia functions, opening apps and websites, and assigning macros. And there are a couple of “dynamic” options such as a timer setting and performance monitoring, but it’s not a robust ecosystem like that of Elgato or Loupedeck. Still, it’s probably enough to get you started, and the Swarm II app includes a handful of templates in case you’re out of ideas.

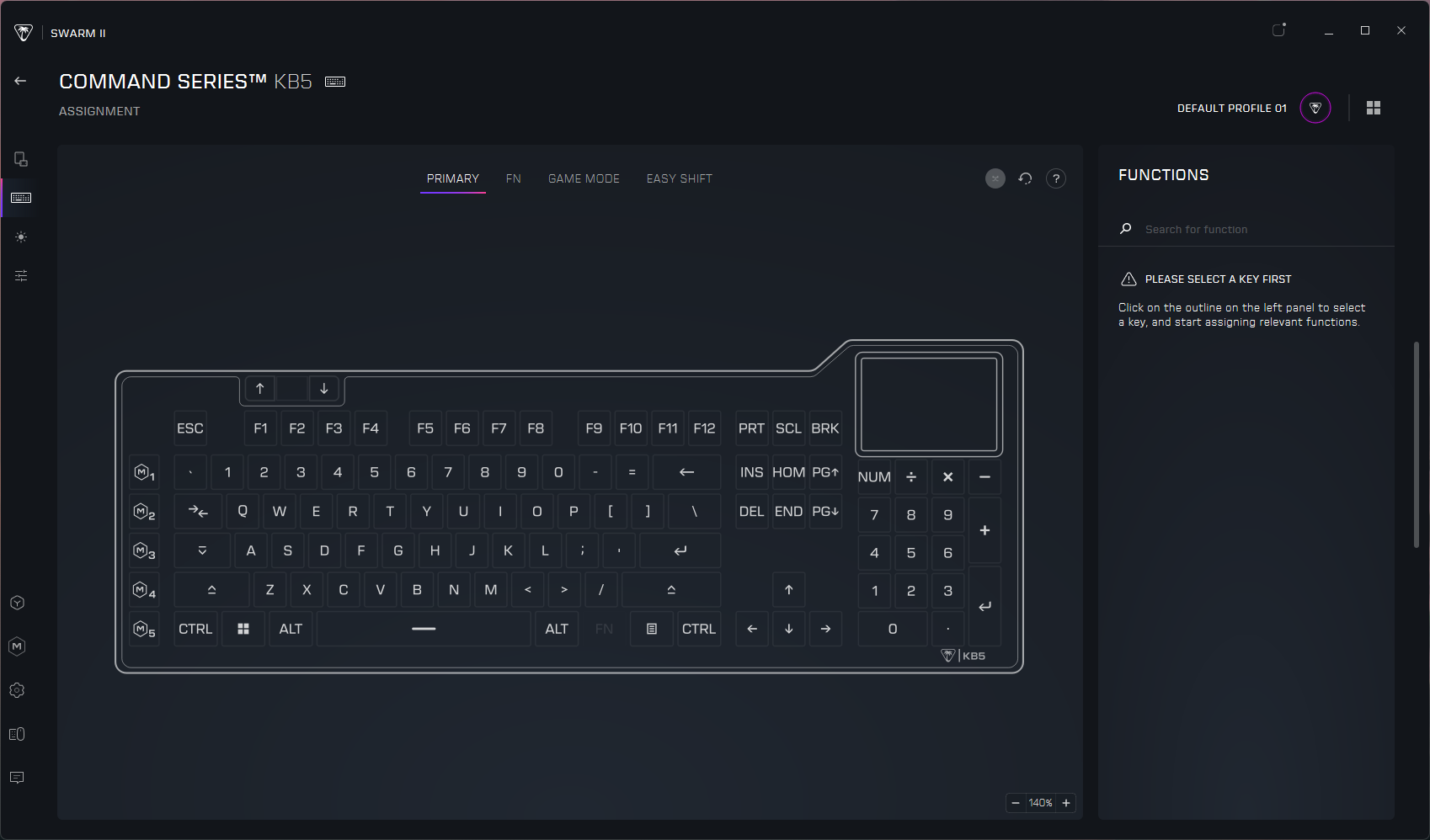

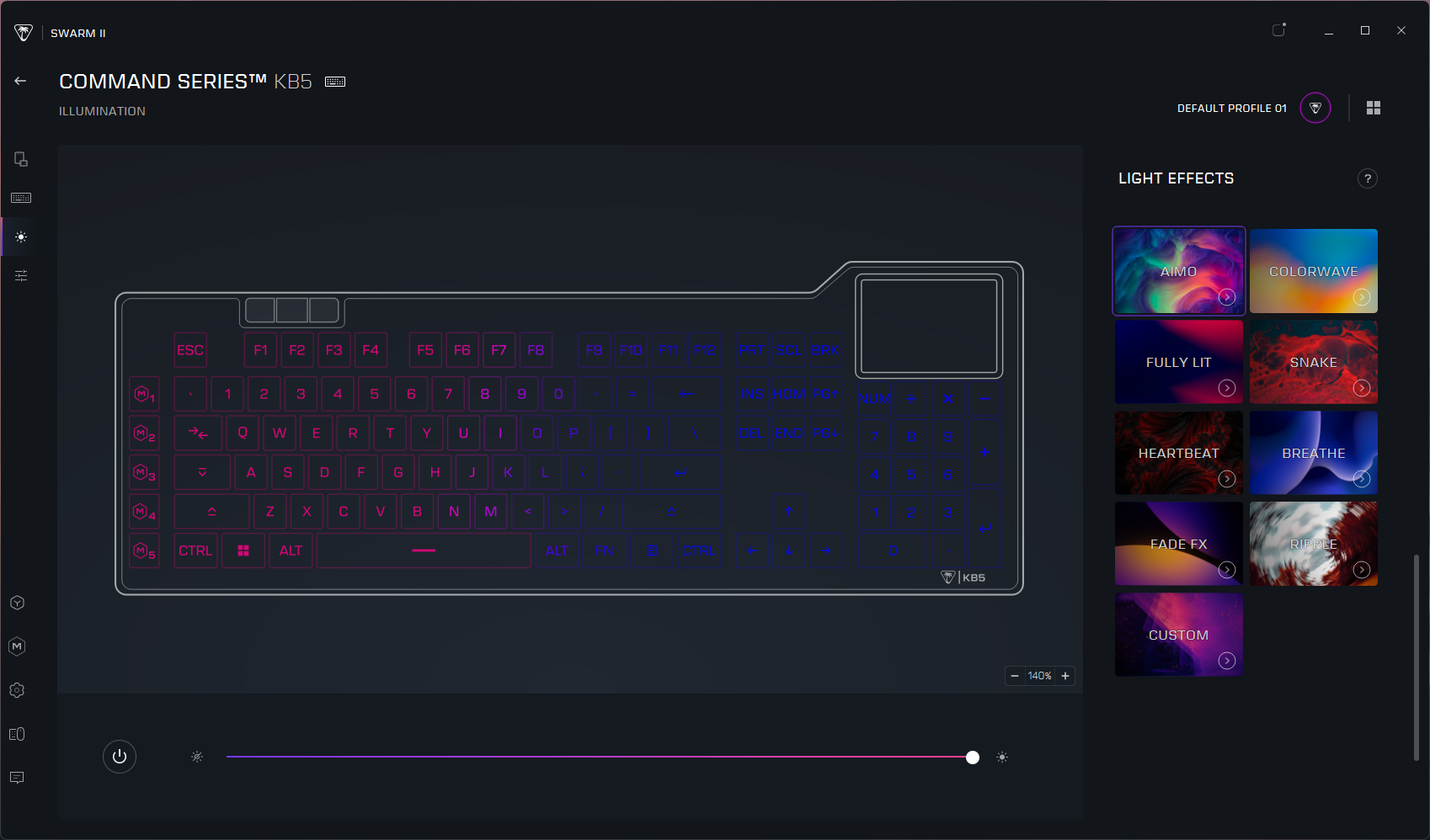

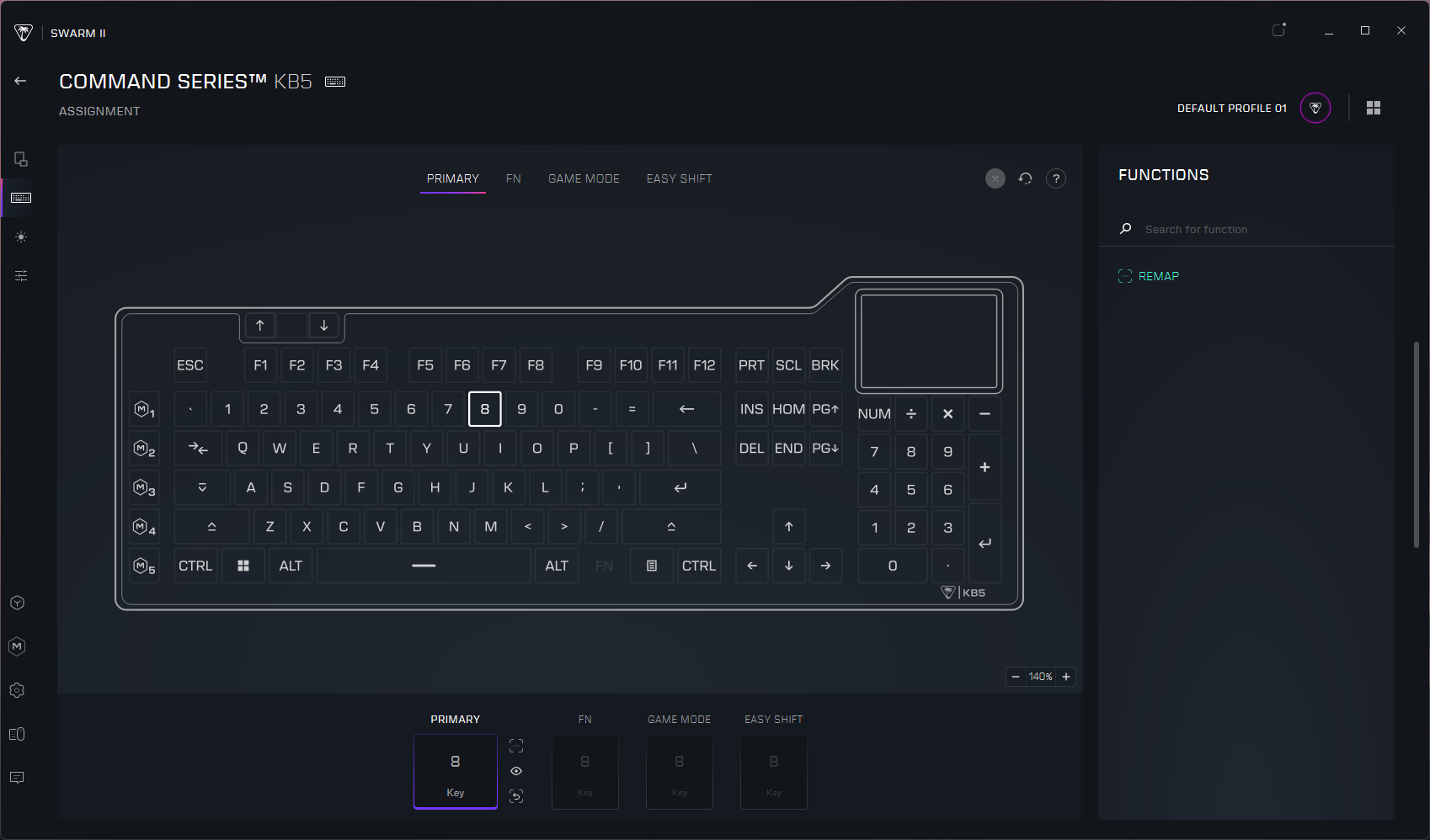

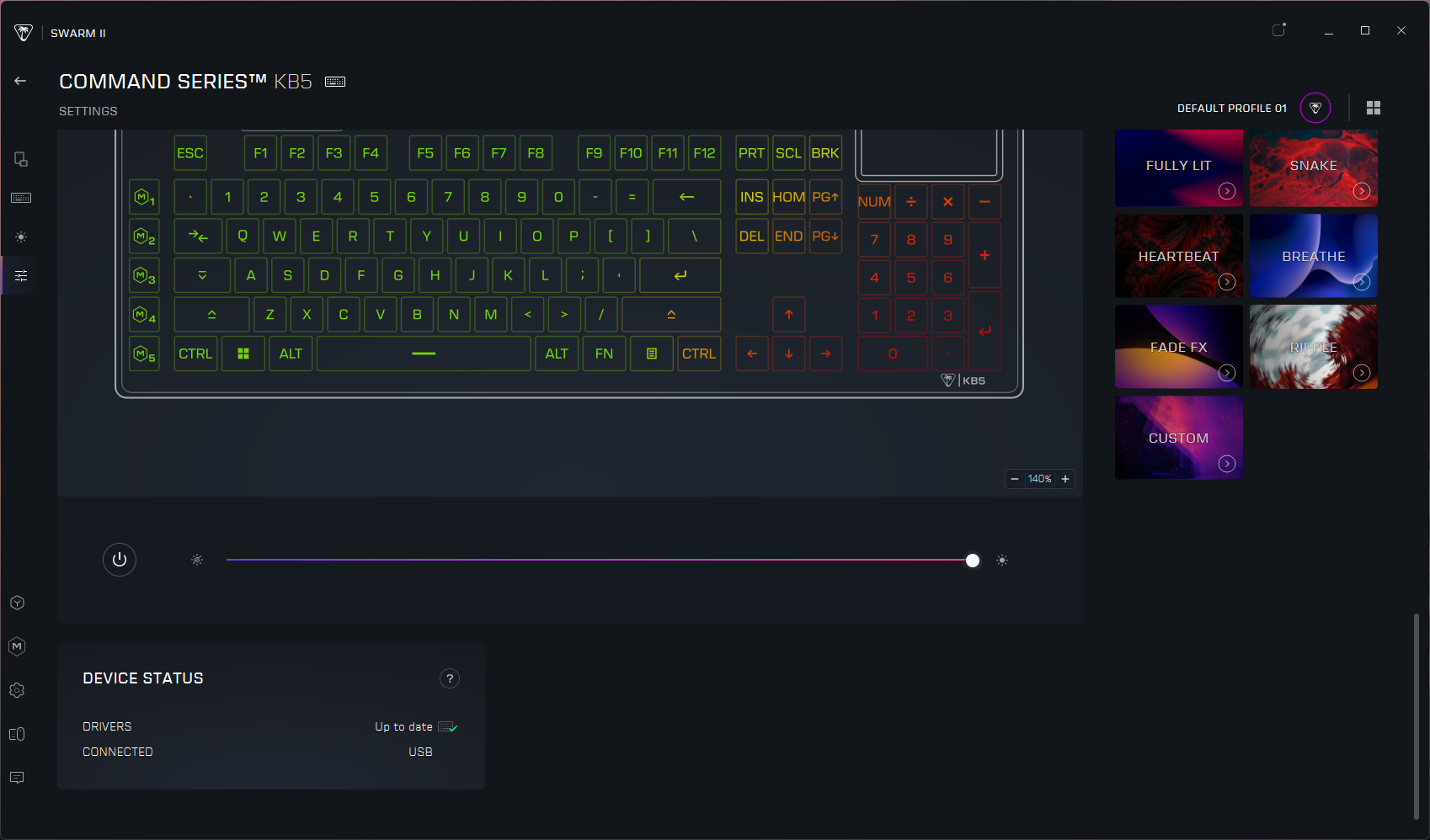

Keymapping is pretty straightforward, and you can map keys to do most of what you can map the touchscreen to do (save for visual things, such as performance monitoring, obviously). You can record and save macros in the app and configure ReacTap. You can also customize the lighting from a handful of presets (or per-key, if you so desire). The keyboard can save up to five onboard profiles, which you can switch between by tapping the profile number in the upper-left corner of the touchscreen.

The Bottom Line

The KB5 is actually a pretty nice compromise, and I like it better than the pricier (and fancier) Turtle Beach KB7. I love having a built-in numberpad that doesn’t cost an extra $100 to snap onto the side of the board, and the smaller touchscreen is actually more manageable to use quickly and without (really) looking. The KB5 may not have magnetic Hall Effect switches, but its low-profile linear switches feel and sound pretty good for a mainstream gaming keyboard. And at $150, it’s basically half the price of the combined KB7 keyboard and KP7 numberpad.

Of course, if you’re really dedicated to making your keyboard a streaming deck substitute, the Corsair Galleon 100 SD is the only real option. Not only does it have physical buttons, it also has knobs — and it’s supported by Elgato’s Stream Deck software, which is still the real differentiating factor for macropad and touchscreen devices these days.
